LFXTAL002995
LFXTAL002995, Crystal 32.768kHz, ±20ppm, 2-Pin, 3.2 x 3.2 x 8.2mm
廠商型號:
LFXTAL002995
芯天下內部編號:
4121-LFXTAL002995
生產廠商:
IQD
描述:
LFXTAL002995, Crystal 32.768kHz, ±20ppm, 2-Pin, 3.2 x 3.2 x 8.2mm
產品類別:
Semiconductors|Crystals, Oscillators & Resonators|Crystal Units
客戶編號:
瀏覽次數:
2

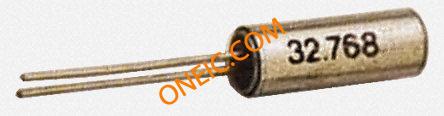

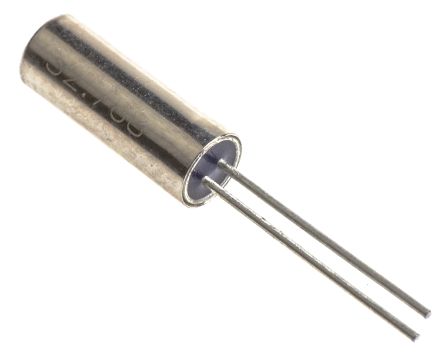

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Dimensions | 3.2 x 3.2 x 8.2mm |
| Frequency Tolerance | ±20ppm |
| Height | 8.2mm |
| Length | 3.2mm |
| Load Capacitance | 12.5pF |
| Mode of Oscillation | Fundamental |
| Mounting Type | Through Hole |
| Pin Count | 2 |
| Series Resistance | 50kΩ |
| Standard Frequency | 32.768kHz |
| Width | 3.2mm |
| Board Level Components | Y |
| 頻率容差 | ±20ppm |
| 安裝類型 | 通孔 |
| 負載電容值 | 12.5pF |
| 高度 | 8.2mm |
| 長度 | 3.2mm |
| 寬度 | 3.2mm |
| 封裝類型 | Zylindrisch |
| 引腳數目 | 2 |
| 振蕩模式 | 基本振蕩 |
| 標準頻率 | 32.768kHz |
| 尺寸 | 3.2 x 3.2 x 8.2mm |
| 串聯電阻值 | 50kΩ |
