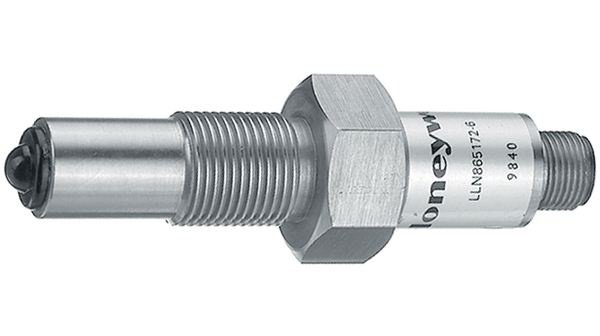

LLN865172-1
LEVEL SENSOR
廠商型號:
LLN865172-1
芯天下內部編號:
159-LLN865172-1
生產廠商:
Honeywell
描述:
LEVEL SENSOR
產品類別:
Automation & Control Gear|Fluid Control Systems|Level Sensors & Switches
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Body Material | Stainless steel |
| Maximum Current | 200 mA |
| Maximum Operating Temperature | +125°C |
| Maximum Pressure | 25bar |
| Minimum Operating Temperature | -40°C |
| Switch Output | NPN |
| Operating Supply Voltage | 10 V to 40 V |
| Connection Method | 3 Pin Connector |
| Product Category | Liquid Level Sensors |
| Current Rating | 60 mA |
| Output Type | Digital |
| RoHS | RoHS Compliant |
| Brand/Series | LLN |
| Function | Level |
| IPRating | IP67 |
| Output | High-InAir |
| PrimaryType | Level |
| Termination | QuickDisconnect |
| Voltage,Supply | 40VDC |
| rohs | RoHS Compliant Part |
| Operation mode | reflective |
| Sensor type | liquid level sensor |
| Operation modes | LIGHT-ON |
| Multiplicity | 1 |
| Body material | stainless steel |
| Gross weight | 1 g |
| Connection | connector M12 |
| Operating temperature | -40...125°C |
| Number of pins | 3 |
| Supply voltage | 10...40V DC |
| Output configuration | NPN |
| Response time | |
| Operating current max | 200mA |
| Thread | G3/8" |
| Output current | 200 mA |
| Pressure resistance | 25 bar |
| Hysteresis | 1 mm |
| Housing Material | Stainless steel |
| Operating voltage | 10...40 VDC |
| Current consumption | 60 mA |
| Accuracy | ±1 mm |
相似產品
| 型號 | 廠商 | 描述 | 操作 |
|---|---|---|---|
| LLN865172-2 | Honeywell | Liquid Level Sensors Stainless housed NPN output | 查看詳情 |
