LM2734YMK
Conv DC-DC Single Step Down 3V to 20V 6-Pin TSOT T/R
廠商型號:
LM2734YMK
芯天下內部編號:
136-LM2734YMK
生產廠商:
texas instruments
描述:
Conv DC-DC Single Step Down 3V to 20V 6-Pin TSOT T/R
產品類別:
Power Management|DC to DC Converter
客戶編號:
規格書:
查看PDF

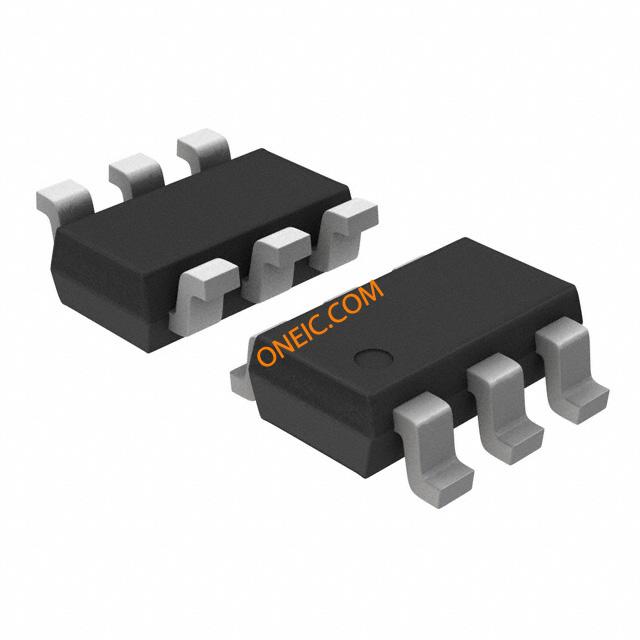

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Package | 6TSOT |
| Type | Step Down |
| Number of Outputs | 1 |
| Output Voltage | 0.8 to 18 V |
| Maximum Output Current | 1 A |
| Minimum Input Voltage | 3 V |
| Maximum Input Voltage | 20 V |
| Switching Frequency | 550(Typ) kHz |
| Efficiency | 90 % |
| Operating Temperature | -40 to 125 °C |
| Mounting | Surface Mount |
| Standard Package | Tape & Reel |
| RoHS | No |
| Input Voltage MAX | 20 V |
| Output Current | 1 A |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | TSOT |
| Input Voltage MIN | 3 V |
| Minimum Operating Temperature | - 40 C |
| Packaging | Reel |
| Series | LM2734 |
| Factory Pack Quantity | 1000 |
| Synchronous Rectifier | No |
| Mounting Type | Surface Mount |
| Frequency - Switching | 550kHz |
| Supplier Device Package | 6-SOT |
| Output Type | Adjustable |
| Current - Output | 1A |
| Voltage - Output | 0.8 V ~ 18 V |
| PWM Type | Current Mode |
| Other Names | LM2734YMKTR |
| Voltage - Input | 3 V ~ 20 V |
| rohs | Contains lead / RoHS non-compliant |
| Primary Input Voltage | :20V |
| No. of Outputs | :1 |
| Voltage Regulator Case Style | :SOT-23 |
| No. of Pins | :6 |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :125°C |
| MSL | :MSL 1 - Unlimited |
| SVHC | :No SVHC (16-Dec-2013) |
| Adjustable Output Voltage Min | :0.8V |
| Base Number | :2734 |
| Device Marking | :LM2734YMK |
| Frequency | :660kHz |
| Input Voltage Min | :3V |
| Operating Temperature Range | :-40°C to +125°C |
| Supply Voltage Min | :3V |
| Switch Output Current Isw Max | :2.5A |
| Termination Type | :SMD |
| Voltage Regulator Type | :Step Down DC-DC |
| Weight (kg) | 0.002188 |
| Tariff No. | 85423990 |
| Status | NRND |
| Replaced By | LM2734YMK/NOPB |
| Temp (oC) | -40 to 125 |
| Package | Pins | SOT?(DDC) | 6 |
| Package QTY | Carrier | 1000 | LARGE T&R |
| Preset Vout | |
| New Flag | |
| Functional Diagram | fbd_snvs288j.gif |
| Undervoltage Lockout | Fixed |
| 7 to 30 Vin Max | 7 to 30 Vin Max |
| Control Mode | Current Mode |
| Iout2 | |
| HiRel | |
| Vout | 18 |
| Brand | |
| Package Group | SOT |
| Reference Design | |
| <7 Vin Max | |
| Topology | Buck |
| Duty Cycle | 96 |
| Iout | 1 |
| Switch Current Limit | 1.7 |
| Datasheet | SNVS288J |
| Vout2 | |
| Compensation | Internal |
| Special Features | Enable Light Load Efficiency Pre-Bias Start-Up |
| Market Segment | Automotive & Transportation Communications & Telecom Computing & Multimedia Consumer & Portable Electronics Industrial Mobile Computing Smart Grid |
| Rating | Catalog |
| TI Design | |
| Soft Start | Fixed |
| Iq | 2.1 |
| Vin | 20 |
| >30 Vin Max Converter | |
| Vref Accuracy | 2 |
| Regulated Outputs | 1 |
