LMXS06C6M100FTAS
POWER INDUCTOR 10UH SHIELDED
廠商型號:
LMXS06C6M100FTAS
芯天下內部編號:
10-LMXS06C6M100FTAS
生產廠商:
AVX Corporation
描述:
POWER INDUCTOR 10UH SHIELDED
產品類別:
Inductors, Coils, Chokes|Fixed Inductors|LMXS

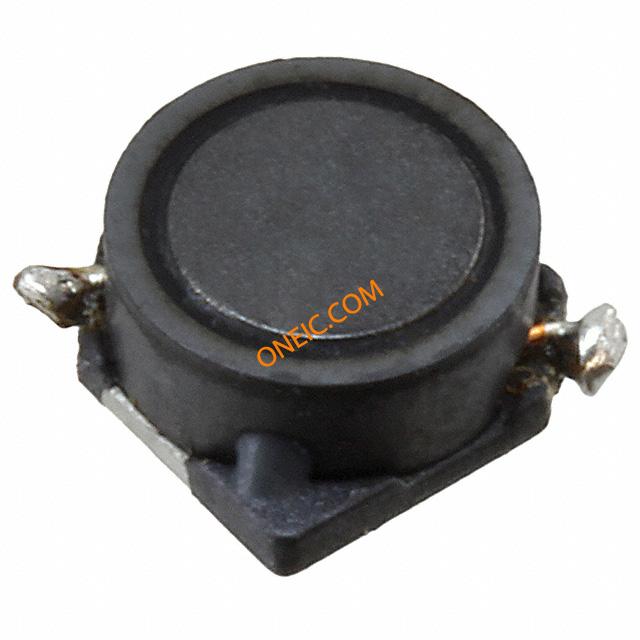

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Matchcode | INDC10U20% |
| Leadfree Defin. | RoHS-conform |
| Unit Pack | 1000 |
| Mounting | SMD |
| MOQ | 1000 |
| T(A)min | -40°C |
| Current I | 1300mA |
| Test frequency | 0.1MHz |
| Width | 6mm |
| Length | 6mm |
| T(A)max | 125°C |
| Technology | WIREWOUND |
| Inductance | 10μH |
| Standard Leadtime | 13 weeks |
| Automotive | NO |
| Height | 2.8mm |
| DCR | 0.098Ohm |
| Packaging | Tape & Reel (TR) |
| Current Rating | 1.3A |
| DC Resistance (DCR) | 98 mOhm Max |
| Height - Seated (Max) | 0.118" (3.00mm) |
| Type | Wirewound |
| Standard Package | 1,000 |
| Material - Core | Ferrite |
| Shielding | Shielded |
| Size / Dimension | 0.236" L x 0.236" W (6.00mm x 6.00mm) |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Frequency - Test | 100kHz |
| Tolerance | ±20% |
| Other Names | 478-7111-2 |
| Package/Case | Non Standard |
| rohs | Lead free / RoHS Compliant |
| Maximum DC Resistance | 98 mOhms |
| Product | SMD Power Inductors |
| Product Category | Fixed Inductors |
| Dimensions | 6 mm W x 6 mm L x 2.8 mm H |
| Operating Temperature Range | - 40 C to + 85 C |
| Maximum DC Current | 1.3 A |
| Series | LMXS |
| Termination Style | SMD/SMT |
| Case Length | 6 mm |
| Test Frequency | 100 kHz |
| Case Height | 2.8 mm |
| Package / Case | 6 mm x 6 mm |
| Case Width | 6 mm |
| RoHS | RoHS Compliant |
| Product Range | :AVX - LMXS Series |
| Inductance Tolerance | :± 20% |
| Inductor Construction | :Shielded |
| DC Resistance Max | :0.098ohm |
| RMS Current (Irms) | :1.3A |
| Case Dimensions | :6mm x 6mm x 2.8mm |
| Weight (kg) | 0 |
| Tariff No. | 85045095 |
