LTL915TBKS
Standard LEDs - SMD Super Flux Thru-Hole Blue 470nm 120Deg
廠商型號:
LTL915TBKS
芯天下內部編號:
203-LTL915TBKS
生產廠商:
Lite-On
描述:
Standard LEDs - SMD Super Flux Thru-Hole Blue 470nm 120Deg
產品類別:
Optoelectronics|LED Lighting|LED Emitters|Standard LEDs - SMD
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Category | Standard LEDs - SMD |
| RoHS | RoHS Compliant |
| Factory Pack Quantity | 65 |
| Life | New Product: New from this manufacturer. |
| Voltage - Forward (Vf) Typ | 4V |
| Luminous Flux @ Current - Test | 1.1 lm |
| Mounting Type | Through Hole |
| Lens Style/Size | Square with Flat Top, 7.62mm |
| Color | Blue |
| Lens Type | Clear |
| Viewing Angle | 120° |
| Wavelength - Dominant | 470nm |

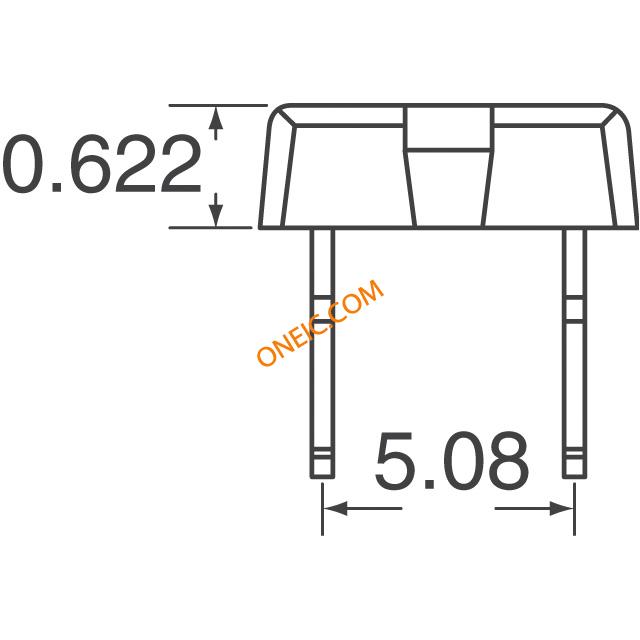

| Size / Dimension | 7.62mm L x 7.62mm W |
| Packaging | Tube |
| Wavelength - Peak | 465nm |
| Standard Package | 65 |
| Current - Test | 50mA |
| Height | 0.62mm |
| Other Names | 160-1641 |
| Package/Case | 4-DIP (0.200", 5.08mm) |
| rohs | Contains lead / RoHS non-compliant |
| 高度 | 0.62mm |
| 視角 | 120° |
| 透鏡類型 | Clear |
| 顏色 | Blue |
| 透鏡樣式/尺寸 | Square with Flat Top, 7.62mm |
