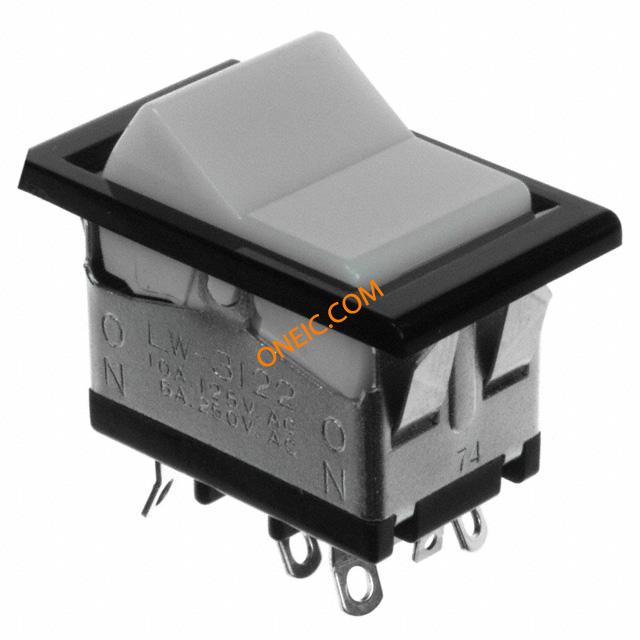

LW3122-0100-A
Rocker Switches & Paddle Switches 10A DPDT ON-ON
廠商型號:
LW3122-0100-A
芯天下內部編號:
240-LW3122-0100-A
生產廠商:
NKK Switches
描述:
Rocker Switches & Paddle Switches 10A DPDT ON-ON
產品類別:
Electromechanical|Switches|Rocker Switches & Paddle Switches
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Category | Rocker Switches & Paddle Switches |
| RoHS | RoHS Compliant |
| Contact Form | DPDT |
| Switch Function | ON - NONE - ON |
| Current Rating | 10 A |
| Voltage Rating AC | 250 V |
| Voltage Rating DC | 30 V |
| Termination Style | Quick Connect |
| Actuator | Rocker |
| Color | Black |
| Mounting Style | Panel |
| Contact Plating | Silver |
| Illumination | Not Illuminated |
| Contact Rating | 10 A at 125 V |
| Housing Material | Brass |
| Mounting Hole | Rectangle |
| Mounting Hole Size | 32 mm x 19.8 mm |
| Operating Temperature Range | - 20 C to + 50 C |
| Series | LW - With Bezel (Solder Lug) |
| Actuator Style | Concave (Standard V) |
| Packaging | Bulk |
| Mounting Type | Panel Mount, Snap-In |
| Voltage Rating - AC | 125V |
| Electrical Life | 10,000 Cycles |
| Color - Actuator/Cap | White |
| Operating Temperature | -20°C ~ 50°C |
| Actuator Marking | No Marking |
| Panel Cutout Dimensions | Rectangular - 32.00mm x 19.80mm |
| Standard Package | 1 |
| Voltage Rating - DC | 30V |
| Mechanical Life | 30,000 Cycles |
| Other Names | LW31220100A |
| Circuit | DPDT |
| rohs | Lead free / RoHS Compliant |
| ActuatorType | Rectangle |
| Application | Forvariouspowerswitchingapplication |
| Brand/Series | LWSeries |
| ContactForm | DPDT |
| Current,Rating | 10Amps |
| DielectricStrength | 1500VAC |
| ElectricalLife | 10000Operations(Min.) |
| Material,Body | Steel(Housing) |
| Material,Contact | SilverCladCopper(Movable),Copper(Stationary) |
| MechanicalLife | 30000Operations(Min.) |
| MountingHoleSize | 1.26x0.78In. |
| MountingType | Snap-In |
| NumberofPoles | 2 |
| NumberofPositions | 2 |
| Operation | On-None-On |
| Resistance,Contact | 10Milliohms(Max.) |
| Resistance,Insulation | 200Megohms(Min.)@500VDC |
| SpecialFeatures | PowerRated |
| Standards | ULRecognized |
| Temperature,Operating,Maximum | +50°C |
| Temperature,Operating,Minimum | -20°C |
| Termination | SolderLugs |
| Type | Rocker |
| Voltage,Rating | 250VAC |
