M2013E4S1W01
SW TOGGLE SPDT THR SILV SLD LUG
廠商型號:
M2013E4S1W01
芯天下內部編號:
240-M2013E4S1W01
生產廠商:
NKK Switches
描述:
SW TOGGLE SPDT THR SILV SLD LUG
產品類別:
Switches|Toggle Switches|M
客戶編號:
規格書:
查看PDF

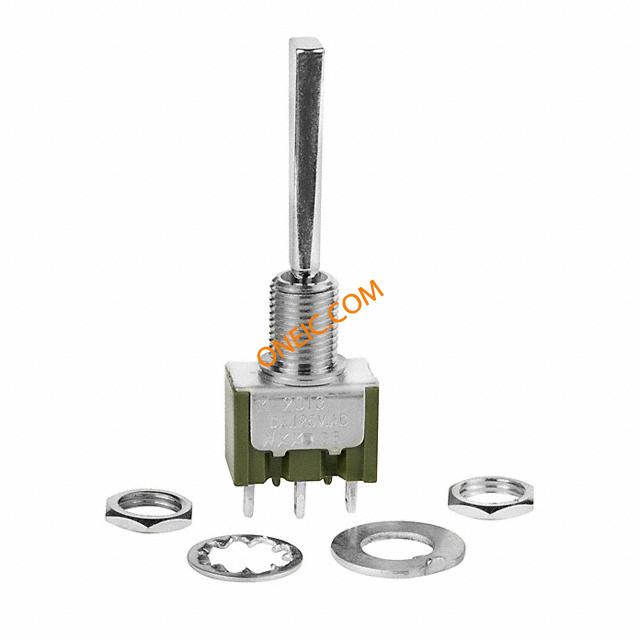

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Circuit | SPDT |
| Illumination | Non-Illuminated |
| Switch Function | On-Off-On |
| Current Rating | 6A (AC), 3A (DC) |
| Panel Cutout Dimensions | Circular - 6.50mm Dia |
| Mounting Type | Panel Mount |
| Voltage Rating - AC | 125V |
| Electrical Life | 25,000 Cycles |
| Termination Style | Solder Lug |
| Packaging | Bulk |
| Operating Temperature | -30°C ~ 85°C |
| Actuator Type | Flatted |
| Standard Package | 1 |
| Voltage Rating - DC | 30V |
| Bushing Thread | 1/4-40 |
| Actuator Material | Brass, Chrome Plated |
| Actuator Length | 21.30mm |
| Features | Epoxy Sealed Terminals |
| Contact Configuration | :SPDT |
| Switch Operation | :On-Off-On |
| Contact Voltage AC Nom | :125V |
| Contact Voltage DC Nom | :30V |
| Contact Current Max | :6A |
| Switch Terminals | :Solder |
| Actuator Style | :Flat Lever |
| Weight (kg) | 0 |
| Tariff No. | 85365080 |
