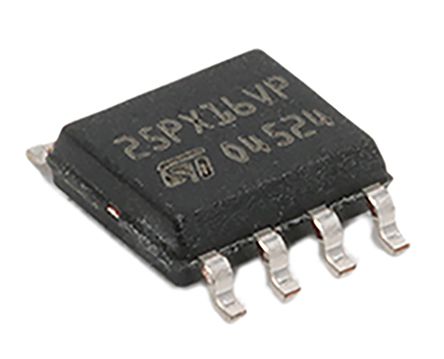

M25PX16-VMN6P

NOR Flash Serial-SPI 2.5V/3.3V 16Mbit 2M x 8bit 8ns 8-Pin SO N Tube

Thumbnail M25PX16-VMN6P Thumbnail M25PX16-VMN6P Thumbnail M25PX16-VMN6P Thumbnail M25PX16-VMN6P Thumbnail M25PX16-VMN6P
廠商型號: M25PX16-VMN6P
芯天下內部編號: 259-M25PX16-VMN6P
生產廠商:
micron micron
描述: NOR Flash Serial-SPI 2.5V/3.3V 16Mbit 2M x 8bit 8ns 8-Pin SO N Tube
產品類別: Memory|Flash
客戶編號:
規格書: 查看PDF
瀏覽次數: 3

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。

庫存與訂購

庫存: 0
庫存獲取中，請稍候....

產品參數

參數類型 參數值
Package 8SO N
Cell Type NOR
Density 16 Mb
Architecture Sectored
Block Organization Symmetrical
Typical Operating Supply Voltage 2.5|3.3 V
Sector Size 64Kbyte x 32
Timing Type Synchronous
Operating Temperature -40 to 85 °C
Address Bus Width 1 Bit
Interface Type Serial-SPI
Page Size 256 byte
Standard Package Rail / Tube
Mounting Surface Mount
Package Width 3.9
Package Length 4.9
PCB 8
Screening Level Industrial
Address Bus Width 1
Typical Operating Supply Voltage 2.5|3.3
EU RoHS Compliant
Number of Words 2M
Minimum Operating Temperature -40
Supplier Package SO N
Standard Package Name SOIC
Maximum Operating Temperature 85
Programming Voltage 2.3 to 3.6|8.5 to 9.5
Number of Bits per Word 8
Boot Block No
Minimum Operating Supply Voltage 2.3
Pin Count 8
Maximum Operating Current 12
Package Height 1.5(Max)
Maximum Random Access Time 8
Packaging Tube
Maximum Operating Supply Voltage 3.6
Density 16M
Lead Shape Gull-wing
Format - Memory FLASH
Supplier Device Package 8-SO
Memory Type FLASH - NOR
Memory Size 16M (2M x 8)
Voltage - Supply 2.3 V ~ 3.6 V
Package / Case 8-SOIC (0.154", 3.90mm Width)
Interface SPI Serial
Speed 75MHz
rohs Lead free / RoHS Compliant
Block Organisation Symmetrical
Dimensions 4.9 x 3.9 x 1.75mm
Height 1.75mm
Length 4.9mm
Maximum Operating Supply Voltage 3.6 V
Maximum Operating Temperature +85 °C
Maximum Random Access Time 5ns
Minimum Operating Supply Voltage 2.3 V
Minimum Operating Temperature -40 °C
Mounting Type Surface Mount
Number of Bits per Word 8bit
Organisation 2M x 8 bit
Package Type SO
Width 3.9mm
Access Time (Max) 8 ns
Address Bus 1 b
Boot Type Not Required
Operating Temp Range -40C to 85C
Word Size 8 b
Operating Temperature (Max) 85C
Operating Temperature (Min) -40C
Sync/Async Synchronous
Operating Temperature Classification Industrial
Programmable Yes
Supply Current 12 mA
Rad Hardened No
Operating Supply Voltage (Typ) 2.5/3.3 V
Operating Supply Voltage (Min) 2.3 V
Operating Supply Voltage (Max) 3.6 V
Memory Configuration :2M x 8bit
Supply Voltage Min :2.3V
Supply Voltage Max :3.6V
Memory Case Style :NSOIC
No. of Pins :8
Clock Frequency :75MHz
IC Interface Type :SPI
Operating Temperature Min :-40°C
Operating Temperature Max :85°C
MSL :MSL 3 - 168 hours
SVHC :No SVHC (20-Jun-2013)
Operating Temperature Range :-40°C to +85°C
Supply Voltage Range :2.3V to 3.6V
Weight (kg) 0.000175
Tariff No. 85423261
