M2T12S4A5A30
Toggle Switches ON-ON .300 BAT RIGHT ANGLE PC 6A & .4VA
廠商型號:
M2T12S4A5A30
芯天下內部編號:
240-M2T12S4A5A30
生產廠商:
NKK Switches
描述:
Toggle Switches ON-ON .300 BAT RIGHT ANGLE PC 6A & .4VA
產品類別:
Switches|Toggle Switches|M2
客戶編號:
規格書:
查看PDF

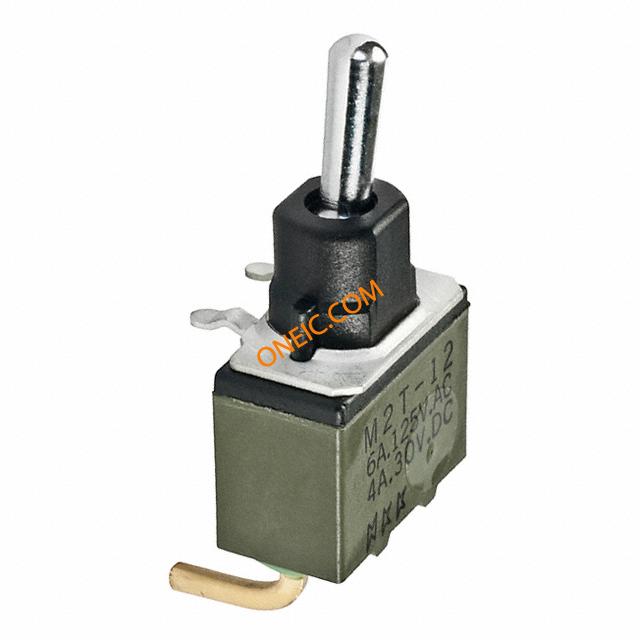

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Actuator Style | Bat Lever |
| Electrical Life | 50000 |
| Product Length | 12.7 |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 85 |
| Product Depth | 27.31 |
| Pole Throw Configuration | SPDT |
| Mounting | PC Mount with Bracket |
| Type | Sealed Miniature |
| Switch Configuration | ON None ON |
| Maximum Current Rating | 6@125VAC |
| Maximum Power Rating | 0.4@28VAC 28VDC |
| Maximum DC Voltage Rating | 30 |
| Base/Housing Material | (Glass Fiber/Polyamide)/(Glass Fi... |
| Maximum AC Voltage Rating | 250 |
| Contact Plating | Gold |
| Minimum Operating Temperature | -30 |
| Mechanical Life | 100000 |
| Terminal Type | PC Pins |
| Contact Material | Silver Alloy |
| Circuit | SPDT |
| Illumination | Non-Illuminated |
| Switch Function | On-On |
| Current Rating | 6A (AC), 4A (DC) |
| Mounting Type | Through Hole, Right Angle |
| Voltage Rating - AC | 125V |
| Electrical Life | 25,000 Cycles |
| Termination Style | PC Pin |
| Packaging | Bulk |
| Operating Temperature | -30°C ~ 85°C |
| Actuator Type | Standard Round |
| Standard Package | 1 |
| Voltage Rating - DC | 30V |
| Bushing Thread | Unthreaded |
| Actuator Material | Brass, Chrome Plated |
| Actuator Length | 7.62mm |
| Features | Process Sealed |
| rohs | Lead free / RoHS Compliant |
| Product Category | Toggle Switches |
| Terminal Seal | Sealed |
| Series | M2T |
| Contact Form | SPDT |
| Mounting Style | Through Hole |
| Actuator | Bat |
| Power Rating | 0.4 VA |
| Part # Aliases | M2T-12ASH3-069G |
| RoHS | RoHS Compliant By Exemption |
| Contact Configuration | :SPDT |
| Switch Operation | :On-None-On |
| Contact Voltage AC Nom | :125V |
| Contact Voltage DC Nom | :28V |
| Contact Current Max | :6A |
| Switch Terminals | :PCB, Solder |
| Weight (kg) | 0 |
| Tariff No. | 85365080 |
