M48T18-150PC1
Real Time Clock Parallel 8KByte 28-Pin PCDIP Tube
廠商型號:
M48T18-150PC1
芯天下內部編號:
390-M48T18-150PC1
生產廠商:
stmicroelectronics
描述:
Real Time Clock Parallel 8KByte 28-Pin PCDIP Tube
產品類別:
Logic and Timing|Real Time Clock

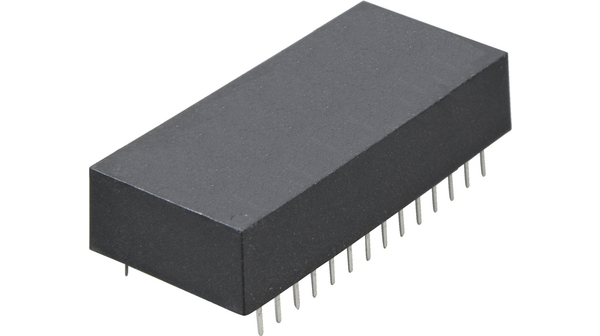

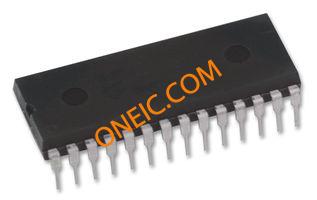

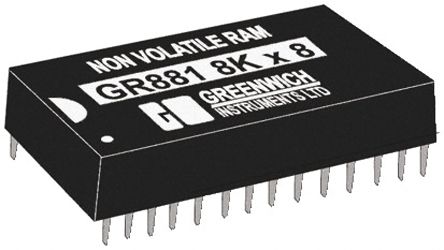

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Package | 28PCDIP |
| Time Format | HH:MM:SS |
| Date Format | DW:DM:M:Y |
| Function | Clock/Calendar/NV Timekeeping RAM/Battery Backup |
| Operating Supply Voltage | 5 V |
| Bus Type | Parallel |
| User RAM | 8192 byte |
| Operating Temperature | 0 to 70 °C |
| Standard Package | Rail / Tube |
| Typical Operating Supply Voltage | 5 |
| Standard Package Name | CDIP |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 70 |
| Minimum Operating Temperature | 0 |
| Package Height | 8.89(Max) |
| Mounting | Through Hole |
| Packaging | Tube |
| PCB | 28 |
| User RAM | 8192 |
| Package Width | 18.34(Max) |
| Supplier Package | PCDIP |
| Package Length | 39.88(Max) |
| Maximum Operating Supply Voltage | 5.5 |
| Minimum Operating Supply Voltage | 4.5 |
| Pin Count | 28 |
| Features | Leap Year, Watchdog Timer |
| Mounting Type | Through Hole |
| Supplier Device Package | 28-PCDIP, CAPHAT? |
| Voltage - Supply | 4.5 V ~ 5.5 V |
| Interface | Parallel |
| Type | Clock/Calendar |
| Package/Case | 28-DIP Module (0.600", 15.24mm) |
| rohs | Lead free / RoHS Compliant |
| Mounting Style | Through Hole |
| Product Category | Real Time Clock |
| RTC Memory Size | 8 KB |
| RTC Bus Interface | Parallel |
| Battery Backup Switching | Yes |
| Supply Voltage - Max | 5.5 V |
| Minimum Operating Temperature | 0 C |
| Package / Case | PDIP-28 |
| Factory Pack Quantity | 12 |
| Supply Voltage - Min | 4.5 V |
| Maximum Operating Temperature | + 70 C |
| RoHS | RoHS Compliant |
| Package Type | PCDIP |
| Operating Temperature (Max) | 70C |
| Operating Temperature (Min) | 0C |
| Operating Temperature Classification | Commercial |
| Rad Hardened | No |
| Operating Supply Voltage (Typ) | 5 V |
| Operating Supply Voltage (Min) | 4.5 V |
| Operating Supply Voltage (Max) | 5.5 V |
| DELETED | Compliant |
| Memory Size | :64Kbit |
| Memory Configuration | :8K x 8bit |
| NVRAM Features | :RTC, Internal Battery, XTAL |
| Supply Voltage Min | :4.5V |
| Supply Voltage Max | :5.5V |
| Memory Case Style | :DIP |
| No. of Pins | :28 |
| IC Interface Type | :Parallel |
| Access Time | :150ns |
| Operating Temperature Min | :0°C |
| Operating Temperature Max | :70°C |
| MSL | :- |
| SVHC | :No SVHC (20-Jun-2013) |
| Frequency | :32768Hz |
| Memory Type | :NVRAM |
| Memory Voltage Vcc | :5V |
| Operating Temperature Range | :0°C to +70°C |
| Supply Voltage Range | :4.5V to 5.5V |
| Termination Type | :Through Hole |
| Weight (kg) | 0.15 |
| Tariff No. | 85411000 |
| Capacitance,Input | 10pF |
| Capacitance,Output | 10pF |
| Current,Input,Leakage | ±1μA |
| Current,Operating | 80mA |
| Current,Output,Leakage | ±1μA |
| DataRetention | 10yrs. |
| Density | 64K |
| MemoryType | Non-VolatileSRAM |
| Organization | 8K×8 |
| PackageType | PCDIP-28 |
| PowerDissipation | 1W |
| Temperature,Operating | 0to+70°C |
| Time,Access | 150ns |
| Time,Fall | ≤5ns |
| Time,Rise | ≤5ns |
| Voltage,Input,High | 4.8to5.8V |
| Voltage,Input,Low | 0.8V |
| Voltage,Output,High | 2.4V |
| Voltage,Output,Low | 0.4V |
| Voltage,Supply | 4.5to5.5V |
