MA40S4S
TRANS 40KHZ ULTRASONIC
廠商型號:
MA40S4S
芯天下內部編號:
233-MA40S4S
生產廠商:
murata electronics
描述:
TRANS 40KHZ ULTRASONIC
產品類別:
Capacitor|Capacitor Misc

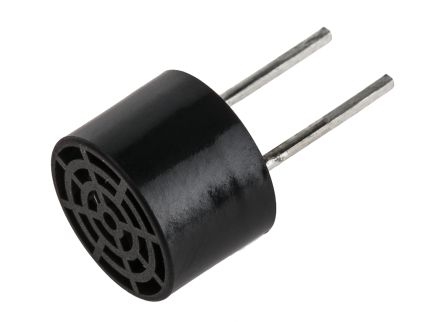

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Category | Audio Indicators & Alerts |
| RoHS | RoHS Compliant |
| Sound Pressure Level | 120 dB |
| Frequency | 40 kHz |
| Voltage Rating | 20 V |
| Diameter | 10 mm |
| Mounting | PCB |
| Packaging | Bulk |
| Series | MA40 |
| Factory Pack Quantity | 100 |
| EU RoHS | Compliant |
| Package Height | 9.9 |
| Package Diameter | 7.1 |
| PCB | 2 |
| Pin Count | 2 |
| Subcategory | Specialized Sensor |
| Lead Time | 84 Days |
| Transmit Sensitivity | 120dB |
| Beam Angle | 80° |
| Standard Package | 100 |
| Other Names | 490-7707 |
| rohs | Lead free / RoHS Compliant |
| Sensor Type | :Ultrasonic Transmitter |
| Sensing Range Min | :200mm |
| Sensing Range Max | :4m |
| Switching Frequency | :40kHz |
| Sensitivity (dB) | :-63dB |
| External Diameter | :9.9mm |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :85°C |
| SVHC | :Lead titanium zirconium oxide (20-Jun-2013) |
| Operating Temperature Range | :-40°C to +85°C |
| Weight (kg) | 0.0005 |
| Tariff No. | 85322400 |
