MAL211836101E3
Cap Aluminum 100uF 25V 20% (6.5 X 18mm) Axial 2.86 Ohm 102mA 4000 hr 125°C Taped in Box
廠商型號:
MAL211836101E3
芯天下內部編號:
5-MAL211836101E3
生產廠商:
vishay / bc components
描述:
Cap Aluminum 100uF 25V 20% (6.5 X 18mm) Axial 2.86 Ohm 102mA 4000 hr 125°C Taped in Box
產品類別:
Capacitor|Capacitor Aluminum

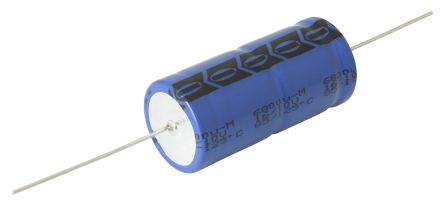

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Mounting | Through Hole |
| Capacitance Value | 100 uF |
| Voltage | 25 Vdc |
| Tolerance | 20 % |
| Equivalent Series Resistance | 2.86 Ohm |
| Ripple Current | 102 mA |
| Lifetime | 4000 h |
| Product Diameter | 6.5 mm |
| Product Length | 18 mm |
| Operating Temperature | -40 to 125 °C |
| Termination Style | Axial |
| Standard Package | Ammo Pack |
| Product Category | Aluminum Electrolytic Capacitors - Leaded |
| RoHS | RoHS Compliant |
| Capacitance | 100 uF |
| Voltage Rating | 25 V |
| Operating Temperature Range | - 40 C to + 125 C |
| Case Diameter | 6.5 mm |
| Case Length | 18 mm |
| Product | High Temp Electrolytic Capacitors |
| ESR | 2.86 Ohms |
| Factory Pack Quantity | 1000 |
| Part # Aliases | 222211836101 |
| Unit Pack | 1000 |
| MOQ | 1000 |
| Dimensions | 6.5 mm Dia. x 18 mm L |
| Series | 118 AHT |
| Type | Axial High Temperature Aluminum Capacitors |
| Case Size | 6.5 mm Dia. x 18 mm L |
| Material, Element | Aluminum Electrolytic |
| Termination | Axial |
| Voltage, Rating | 25 VDC |
| rohs | RoHS Compliant Part |
| 系列 | 118 |
| 電壓 | 25 V |
| 容差 | ±20% |
| 最高工作溫度 | +125°C |
| 容差 正 | +20% |
| 端子類型 | 軸向 |
| 電容值 | 100 μF |
| 最低工作溫度 | -40°C |
| 技術 | 電解 |
| 等值串聯電阻值 | 2.86Ω |
| 泄漏電流 | 20 μA |
| 壽命時間 | 500h |
| 尺寸 | 6.5 (Dia.) x 18mm |
| 容差 負 | -20% |
| 長度 | 18mm |
| Board Level Components | Y |
| 直徑 | 6.5mm |
| 紋波電流 | 102mA |
| 引線直徑 | 0.8mm |
| 結構 | 軸向 |
