MB2011LD3W01
Switch Push Button ON (ON) SPDT Round Plunger 6A 250VAC 30VDC Momentary Contact Solder Lug Panel Mount
廠商型號:
MB2011LD3W01
芯天下內部編號:
240-MB2011LD3W01
生產廠商:
NKK Switches
描述:
Switch Push Button ON (ON) SPDT Round Plunger 6A 250VAC 30VDC Momentary Contact Solder Lug Panel Mount
產品類別:
Switches|Pushbutton Switches|MB2000

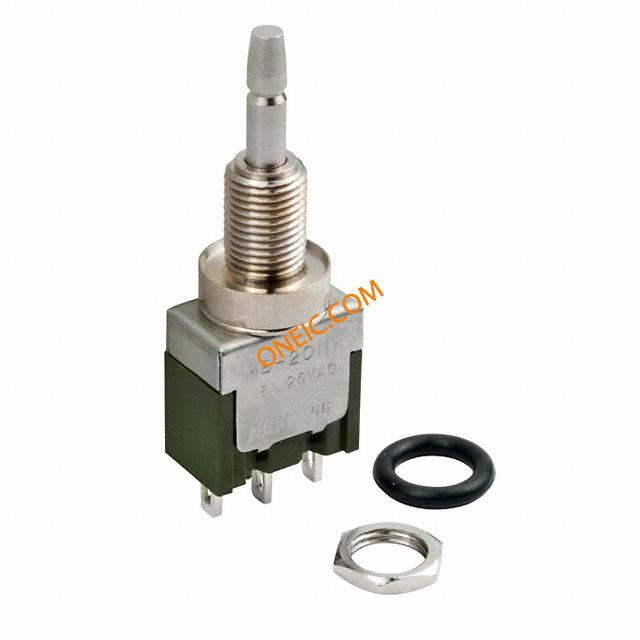

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Function | Momentary Contact |
| Electrical Life | 25000 |
| Product Length | 13 |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 85 |
| Contact Plating | Silver |
| Product Depth | 7.9 |
| Mounting | Panel Mount |
| Body Orientation | Straight |
| Actuator Style | Round Plunger |
| Switch Configuration | ON (ON) |
| Product Height | 39.4 |
| Maximum DC Voltage Rating | 30 |
| Maximum AC Voltage Rating | 250 |
| Pole Throw Configuration | SPDT |
| Terminal Type | Solder Lug |
| Minimum Operating Temperature | -30 |
| Maximum Current Rating | 6@125VAC |
| Mechanical Life | 50000 |
| Actuator Material | Brass |
| Contact Material | Silver Alloy |
| Packaging | Bulk |
| Switch Function | On-Mom |
| Current Rating | 6A (AC), 3A (DC) |
| Panel Cutout Dimensions | Circular - 6.50mm Dia |
| Mounting Type | Panel Mount, Rear |
| Voltage Rating - AC | 125V |
| Type | Standard |
| Electrical Life | 25,000 Cycles |
| Termination Style | Solder Lug |
| Operating Temperature | -30°C ~ 85°C |
| Actuator Type | Plunger for Cap |
| Standard Package | 1 |
| Voltage Rating - DC | 30V |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mechanical Life | 50,000 Cycles |
| Circuit | SPDT |
| Features | Epoxy Sealed Terminals |
| rohs | Lead free / RoHS Compliant |
| Contact Configuration | :SPDT |
| Switch Operation | :On-(On) |
| Contact Voltage AC Nom | :125V |
| Contact Voltage DC Nom | :30V |
| Contact Current Max | :6A |
| Switch Terminals | :Solder |
| Weight (kg) | 0 |
| Tariff No. | 85365080 |
