MF-R005-0-99
PTC Resettable Fuse 40A 60V Bulk
廠商型號:
MF-R005-0-99
芯天下內部編號:
18-MF-R005-0-99
生產廠商:
bourns
描述:
PTC Resettable Fuse 40A 60V Bulk
產品類別:
Circuit Protection|PTC Resettable Fuse

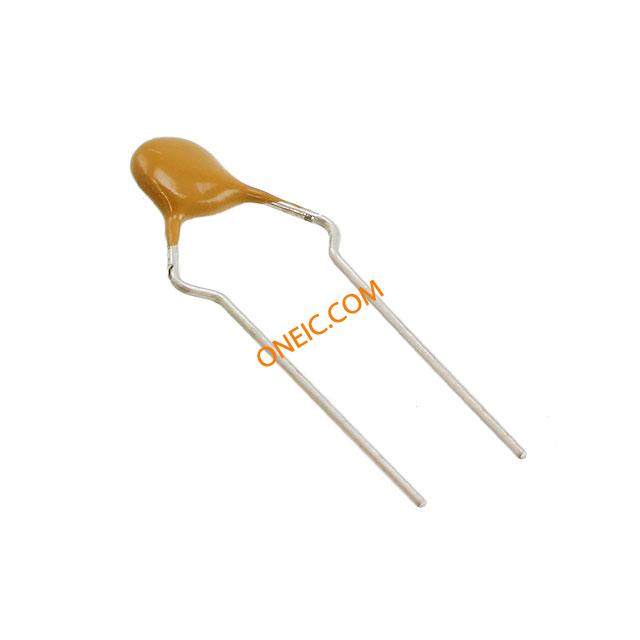

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Trip Current | 0.1 A |
| Maximum Voltage Rating | 60 V |
| Hold Current | 0.05 A |
| Maximum Current Rating | 40 A |
| Agency Approvals | CSA |
| Maximum Trip Time | 5@0.5A s |
| Typical Power Dissipation | 0.22 W |
| Minimum Initial Resistance | 7.3 Ohm |
| Maximum Initial Resistance | 11.1 Ohm |
| Standard Package | Bulk |
| Product Category | Resettable Fuses |
| RoHS | RoHS Compliant |
| Current Rating | 40 A |
| Resistance | 11.1 Ohms |
| Maximum Voltage DC | 60 V |
| Mounting Style | Through Hole |
| Termination Style | Radial |
| Lead Spacing | 5.1 mm |
| Series | MF-R |
| Operating Temperature Range | - 40 C to + 85 C |
| Current Rating (Max) | 40 A |
| Dimensions | 8 mm L x 3.1 mm W x 8.3 mm H x 8 mm D |
| Maximum Voltage | 60 VDC |
| Packaging | Bulk |
| Factory Pack Quantity | 500 |
| Type | PTC Resettable Fuses |
| Lead Diameter | 0.4 |
| Product Diameter | 8(Max) |
| Mounting | Through Hole |
| Maximum Current Rating | 40 |
| Typical Power Dissipation | 0.22 |
| Application | Automotive Applications|Computers... |
| Maximum Post Trip Resistance | 22 |
| Terminal Pitch | 5.1(Nom) |
| EU RoHS | Compliant |
| Minimum Initial Resistance | 7.3 |
| Minimum Operating Temperature | -40 |
| Wire Form | Outside Crimp Standoff |
| Maximum Initial Resistance | 11.1 |
| Maximum Operating Temperature | 85 |
| Maximum Trip Time | 5@0.5A |
| Seated Plane Height | 8.3(Max) |
| Product Depth | 3.1(Max) |
| Number of Terminals | 2 |
| Trip Current | 0.1 |
| Hold Current | 0.05 |
| Current - Max | 40A |
| Voltage - Max | 60V |
| Time to Trip | 5s |
| Current - Hold (Ih) (Max) | 50mA |
| R Min/Max | 7.300 ~ 11.10 Ohm |
| Other Names | MFR005099 |
| Current - Trip (It) | 100mA |
| Package/Case | * |
| rohs | Lead free / RoHS Compliant |
| Diameter | 8 mm |
| Brand | Bourns |
| Height | 8.3 mm |
| Width | 3.1 mm |
| Length | 8 mm |
| Tradename | Multifuse |
| Pd - Power Dissipation | 220 mW |
| Current Rating - Max | 40 A |
