MF-SM030-2
PTC Resettable Fuse 40A 60V T/R
廠商型號:
MF-SM030-2
芯天下內部編號:
18-MF-SM030-2
生產廠商:
bourns
描述:
PTC Resettable Fuse 40A 60V T/R
產品類別:
Circuit Protection|PTC Resettable Fuse
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Trip Current | 0.6 A |
| Maximum Voltage Rating | 60 V |
| Hold Current | 0.3 A |
| Maximum Current Rating | 40 A |
| Agency Approvals | CSA/TUV/UL |
| Maximum Trip Time | 3@1.5A s |
| Typical Power Dissipation | 1.7 W |
| Minimum Initial Resistance | 0.9 Ohm |
| Standard Package | Cut Tape |
| Product Category | Resettable Fuses |
| RoHS | RoHS Compliant |
| Current Rating | 40 A |
| Resistance | 4.8 Ohms |
| Maximum Voltage DC | 60 V |
| Mounting Style | SMD/SMT |
| Termination Style | SMD/SMT |
| Series | MF-SM |
| Operating Temperature Range | - 40 C to + 85 C |
| Current Rating (Max) | 40 A |

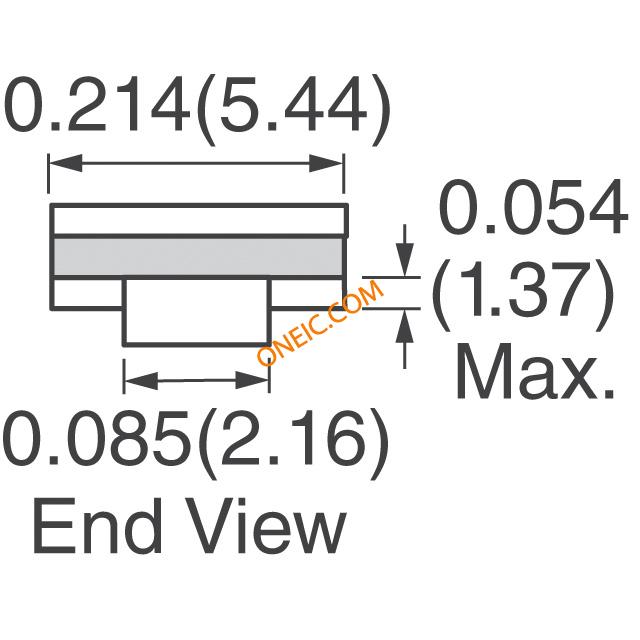

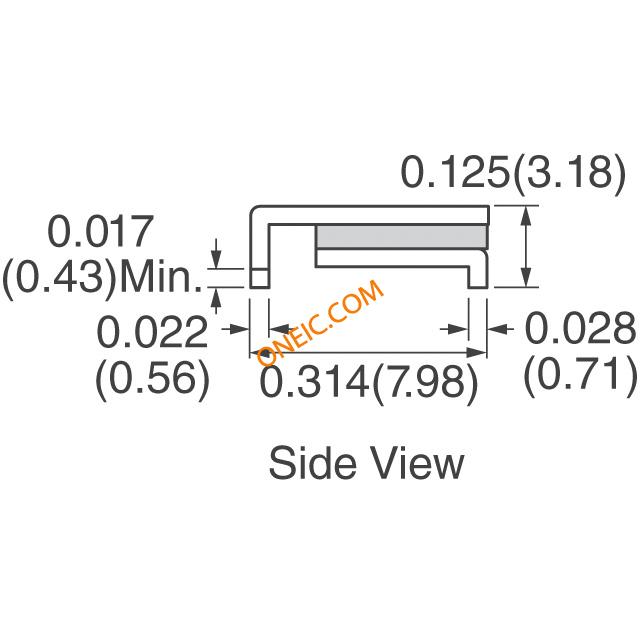

| Dimensions | 7.98 mm L x 5.44 mm W x 3.18 mm H |
| Maximum Voltage | 60 VDC |
| Package / Case | 2920 (7351 metric) |
| Packaging | Reel |
| Factory Pack Quantity | 2000 |
| Type | PTC Resettable Fuses |
| Typical Power Dissipation | 1.7 |
| Product Length | 7.98(Max) |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 85 |
| Hold Current | 0.3 |
| Product Depth | 5.44(Max) |
| Number of Terminals | 2 |
| Trip Current | 0.6 |
| Maximum Post Trip Resistance | 4.8 |
| Maximum Current Rating | 40 |
| Application | Automotive Applications|Computers... |
| Maximum Trip Time | 3@1.5A |
| Minimum Initial Resistance | 0.9 |
| Mounting | Surface Mount |
| Minimum Operating Temperature | -40 |
| Product Height | 3.18(Max) |
| Package/Case | SMD |
| Current - Max | 40A |
| Voltage - Max | 60V |
| Time to Trip | 3s |
| R Min/Max | 0.900 ~ 4.800 Ohm |
| Current - Hold (Ih) (Max) | 300mA |
| Current - Trip (It) | 600mA |
| rohs | Lead free / RoHS Compliant |
| Other Names | MF-SM030CT |
| Height | 3.18mm |
| Length | 7.98mm |
| Maximum Current | 40 A |
| Maximum Operating Temperature | +85°C |
| Maximum Resistance | 4.8Ω |
| Minimum Operating Temperature | -40°C |
| Minimum Resistance | 0.9Ω |
| Power Dissipation | 1.7W |
| Terminal Material | Tin Plated Brass |
| Voltage Rating | 60 V |
| Width | 5.44mm |
| Current Rating - Max | 40 A |
| Wire Form | Not Required |
| Operating Temperature Max Deg. C | 85C |
| Operating Temperature Min Deg. C | -40C |
| Voltage Rating Max | 60V |
| Initial Resistance (Min) | 0.9 Ohm |
| Post Trip Resistance (Max) | 4.8 Ohm |
| Power Dissipation (Typ) | 1.7 W |
| Trip Time (Max) | 3@1.5A s |
| Holding Current | :300mA |
| Tripping Current | :600mA |
| Carrying Current Max | :40A |
| Initial Resistance Max | :4.8ohm |
| Operating Voltage | :60V |
| PTC Fuse Case | :SMD |
| SVHC | :No SVHC (20-Jun-2013) |
| Case Material | :Epoxy polymer |
| Current Max | :40A |
| External Depth | :3.18mm |
| External Length / Height | :5.44mm |
| External Width | :7.98mm |
| Holding Current Max Ih | :0.3A |
| Initial Resistance Min | :0.90ohm |
| Lead Length | :0.43mm |
| Operating Temperature Max | :85°C |
| Operating Temperature Min | :-40°C |
| Pitch Max | :7.98mm |
| Pitch Min | :6.73mm |
| Resistance Temperature | :23°C |
| Surface Tripped Temperature Max | :125°C |
| Tab Width | :0.71mm |
| Termination Type | :SMD |
| Thermistor Type | :PTC Resettable Fuse |
| Weight (kg) | 0.001 |
| Tariff No. | 85361010 |
| Brand/Series | MF-SMSeries |
| Current,Rating | 0.3A |
| MountingType | PCB |
| PrimaryType | Resettable |
| Resistance,DC | 0.9Ohms |
| Termination | SMT |
| Voltage,Rating | 60VDC |
