MMDL301T1G
Diode Schottky 30V 2-Pin SOD-323 T/R
廠商型號:
MMDL301T1G
芯天下內部編號:
277-MMDL301T1G
生產廠商:
on semiconductor
描述:
Diode Schottky 30V 2-Pin SOD-323 T/R
產品類別:
Discrete|Diode|Rectifier

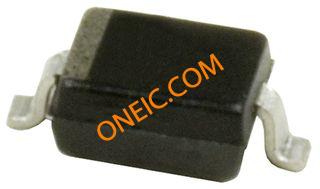

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Package | 2SOD-323 |
| Type | Schottky Diode |
| Configuration | Single |
| Peak Reverse Repetitive Voltage | 30 V |
| Peak Reverse Current | 0.2@25V uA |
| Peak Forward Voltage | 0.6@0.01A V |
| Operating Temperature | -55 to 150 °C |
| Mounting | Surface Mount |
| Standard Package | Tape & Reel |
| Supplier Package | SOD-323 |
| Standard Package Name | SOD-323 |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 150 |
| Operating Junction Temperature | -55 to 150 |
| Peak Reverse Repetitive Voltage | 30 |
| Packaging | Tape and Reel |
| Peak Reverse Current | 0.2@25V |
| Peak Forward Voltage | 0.6@0.01A |
| Minimum Operating Temperature | -55 |
| Pin Count | 2 |
| Lead Shape | Gull-wing |
| Capacitance @ Vr, F | 1.5pF @ 15V, 1MHz |
| Supplier Device Package | SOD-323 |
| Voltage - Peak Reverse (Max) | 30V |
| Package / Case | SC-76, SOD-323 |
| Power Dissipation (Max) | 200mW |
| Diode Type | Schottky - Single |
| Other Names | MMDL301T1GOSTR |
| rohs | Lead free / RoHS Compliant |
| Factory Pack Quantity | 3000 |
| Product | Schottky Diodes |
| Product Category | Schottky Diodes & Rectifiers |
| Operating Temperature Range | - 55 C to + 150 C |
| Maximum Reverse Leakage Current | 0.2 uA |
| Forward Voltage Drop | 0.6 V at 0.01 A |
| Peak Reverse Voltage | 30 V |
| Mounting Style | SMD/SMT |
| RoHS | RoHS Compliant |
| Diode Configuration | :Single |
| Repetitive Reverse Voltage Vrrm Max | :30V |
| Forward Current If(AV) | :10mA |
| Forward Voltage VF Max | :450mV |
| Operating Temperature Min | :-55°C |
| Weight (kg) | 0.002 |
| Tariff No. | 85411000 |
