MPXM2102AS
Pressure Sensor 0KPa to 100KPa Absolute 5-Pin(4+Tab) M-PAC Rail
廠商型號:
MPXM2102AS
芯天下內部編號:
146-MPXM2102AS
生產廠商:
freescale semiconductor
描述:
Pressure Sensor 0KPa to 100KPa Absolute 5-Pin(4+Tab) M-PAC Rail
產品類別:
Sensors and Transducers|Pressure Sensor

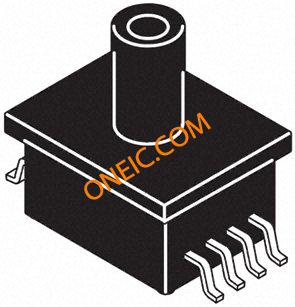

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Package | 5M-PAC |
| Device Pressure Type | Absolute |
| Operating Pressure Range | 0 to 100 KPa |
| Overload Pressure | 400 KPa |
| Operating Supply Voltage | 10 V |
| Mounting | Surface Mount |
| Standard Package | Rail / Tube |

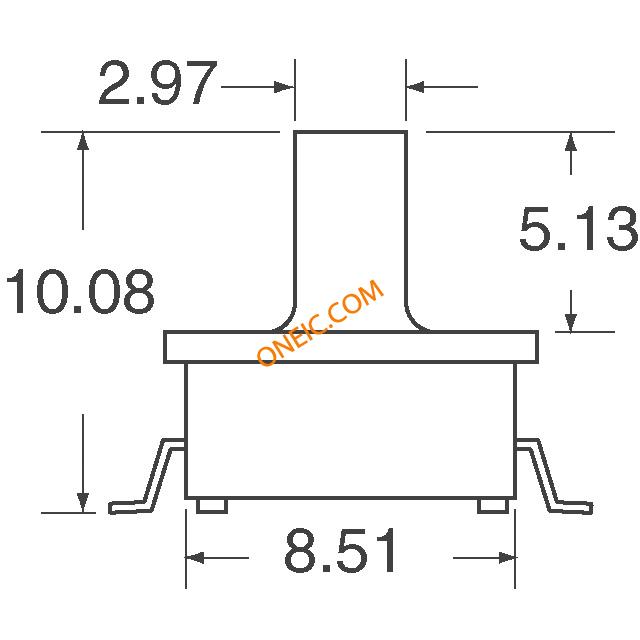

| Port Size | Male, 0.117" (2.97mm) Tube |
| Output | 0 mV ~ 40 mV |
| Termination Style | PCB |
| Pressure Type | Absolute |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 16V |
| Operating Pressure | 14.5 PSI |
| Package/Case | 5-SMD Module |
| rohs | Lead free / RoHS Compliant |
| Accuracy | ±1 % |
| Analogue Output | 38.5 → 41.5 mV |
| Housing Material | Epoxy |
| Maximum Operating Temperature | +125°C |
| Maximum Pressure Reading | 100kPa |
| Media Measured | Air |
| Minimum Operating Temperature | -40°C |
| Minimum Pressure Reading | 0kPa |
| Pressure Reading Type | Absolute |
| Response Time | 1 ms |
| Supply Voltage | 10 V dc |
| Terminal Type | PCB |
| Factory Pack Quantity | 60 |
| Product Category | Board Mount Pressure / Force Sensors |
| Series | MPXx2102 |
| Port Type | Single Axial Barbless |
| Unit Weight | 0.018618 oz |
| Packaging | Tube |
| Supply Voltage - Max | 16 V |
| Mounting Style | SMD/SMT |
| Package / Case | M-PAK-5 |
| Supply Current | 6 mA |
| RoHS | RoHS Compliant By Exemption |
| Operating Temp Range | -40C to 125C |
| Package Type | M-PAC |
| Pin Count | 4 +Tab |
| Type | Absolute |
| Operating Temperature Classification | Automotive |
| Overload Pressure (Max) | 400KPa |
| Pressure Range | 0 to 100KPa |
| Rad Hardened | No |
| Operating Supply Voltage (Typ) | 10 V |
| Operating Supply Voltage (Max) | 16 V |
| DELETED | Compliant |
| Operating Pressure Min | :0kPa |
| Operating Pressure Max | :100kPa |
| Supply Voltage Min | :10V |
| Supply Voltage Max | :16V |
| Sensor Case Style | :1320A-02 |
| No. of Pins | :5 |
| Connection Size | :2.972mm |
| Sensitivity, V/P | :0.4mV/kPa |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :125°C |
| MSL | :- |
| SVHC | :No SVHC (20-Jun-2013) |
| Base Number | :2102 |
| Operating Temperature Range | :-40°C to +125°C |
| Port Style | :Axial Port |
| Supply Voltage Range | :16V |
| Termination Type | :SMD |
| Weight (kg) | 0.01 |
| Tariff No. | 85411000 |
