MRY106-A
Rotary Switches TURRET TERM 2-6 POS
廠商型號:
MRY106-A
芯天下內部編號:
240-MRY106-A
生產廠商:
NKK Switches
描述:
Rotary Switches TURRET TERM 2-6 POS
產品類別:
Switches|Rotary Switches|MR
客戶編號:
規格書:
查看PDF

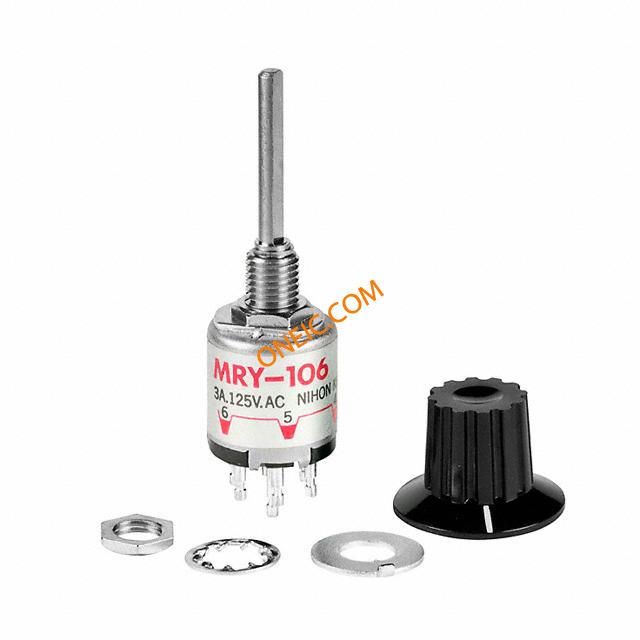

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Pole Throw Configuration | SP6T |
| Mounting | Panel Mount/Through Hole |
| Maximum Current Rating | 3@125VAC |
| Maximum DC Voltage Rating | 30 |
| Number of Positions | 6 |
| Function | Miniature |
| EU RoHS | Compliant |
| Contact Plating | Gold |
| Minimum Operating Temperature | -10 |
| Mechanical Life | 15000 |
| Terminal Type | Turret |
| Electrical Life | 7500 |
| Product Length | 14 |
| Maximum Operating Temperature | 70 |
| Body Orientation | Straight |
| Base/Housing Material | Phenolic Resin/Brass |
| Product Depth | 14 |
| Actuator Style | Knob Shaft |
| Maximum AC Voltage Rating | 125 |
| Product Height | 46 |
| Angle of Throw | 60 |
| Actuator Material | Brass |
| Contact Material | Copper |
| Orientation | Vertical |
| Mounting Type | Panel Mount |
| Number of Decks | 1 |
| Angle of Throw | 60° |
| Termination Style | Solder Turret |
| Number of Poles per Deck | 1 |
| Actuator Type | Knob |
| Standard Package | 1 |
| Contact Rating @ Voltage | 3A @ 125VAC |
| Circuit per Deck | SP6T |
| rohs | Lead free / RoHS Compliant |
| Voltage Rating AC | 28 V |
| Product Category | Rotary Switches |
| Current Rating | 3 A at 125 VAC, 2 A at 30 VDC |
| Contact Form | SP |
| Voltage Rating | 125 VAC, 30 VDC |
| Voltage Rating DC | 28 V |
| Index Angle | 60 deg |
| Index Stops | Adjustable |
| Actuator | Shaft Actuated, with Knob |
| Contact Style | Non Shorting |
| Part # Aliases | MRY-106 |
| RoHS | RoHS Compliant By Exemption |
| ActuatorType | Shaft |
| BodyStyle | Miniature |
| Current,Rating | 3Amps |
| DielectricStrength | 1000VAC |
| MountingHoleSize | 0.025In. |
| MountingType | Panel |
| NumberofPoles | 1 |
| NumberofPositions | 2-6 |
| Termination | SolderLugs |
| Type | Rotary |
| Voltage,Rating | 125VAC |
