MS0850505F045S1A
SW MINI SNAP ACTION SPDT 5A
廠商型號:
MS0850505F045S1A
芯天下內部編號:
129-MS0850505F045S1A
生產廠商:
E-Switch
描述:
SW MINI SNAP ACTION SPDT 5A
產品類別:
Switches|Snap Action, Limit Switches|MS

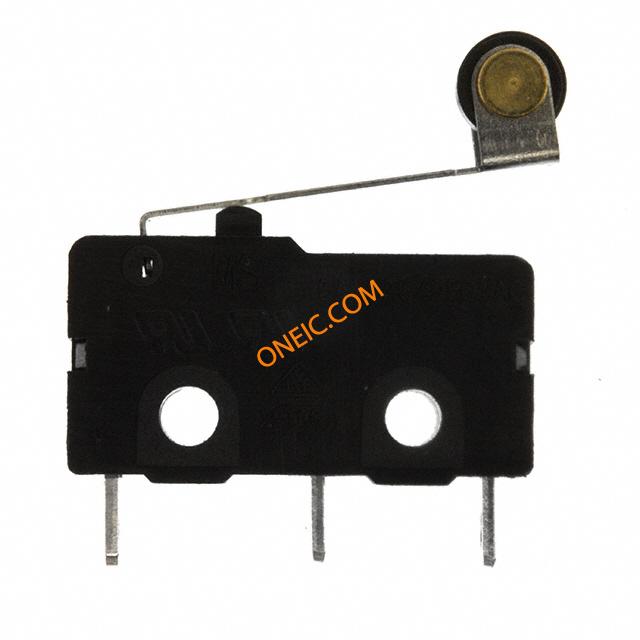

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Current Rating | 5A (AC) |
| Operating Force, Torque | 45gf |
| Voltage Rating - AC | 125V |
| Electrical Life | 50,000 Cycles |
| Termination Style | Solder Lug |
| Operating Temperature | -25°C ~ 85°C |
| Mechanical Life | 1,000,000 Cycles |
| Standard Package | 1 |
| Pretravel | 0.157" (4.0mm) |
| Switch Function | On-Mom |
| Operating Position | 0.587" (14.9mm) |
| Circuit | SPDT |
| Mounting Type | Chassis Mount |
| Packaging | Bulk |
| Actuator Type | Lever, Roller |
| Release Force | 20gf |
| Other Names | EG4552 |
| Voltage Rating AC | 250 V |
| Product Category | Basic / Snap Action Switches |
| Series | MS |
| Contact Form | SPDT |
| Operating Force | 0.4 N |
| Actuator | Roller Lever |
| Type | Miniature |
| RoHS | RoHS Compliant |
| SubCategory | Snap-Action Switch |
| MainCategory | Switches |
