NACE100M16V4X5.5TR13F

Cap Aluminum 10uF 16V 20% (4 X 5.5mm) SMD 26.5 Ohm 25mA 2000 hr 85°C T/R

廠商型號: NACE100M16V4X5.5TR13F
芯天下內部編號: 618-NACE100M16V4X5-5TR13F
生產廠商:
nic components nic components
描述: Cap Aluminum 10uF 16V 20% (4 X 5.5mm) SMD 26.5 Ohm 25mA 2000 hr 85°C T/R
產品類別: Capacitor|Capacitor Aluminum
客戶編號:
規格書: 查看PDF
瀏覽次數: 7

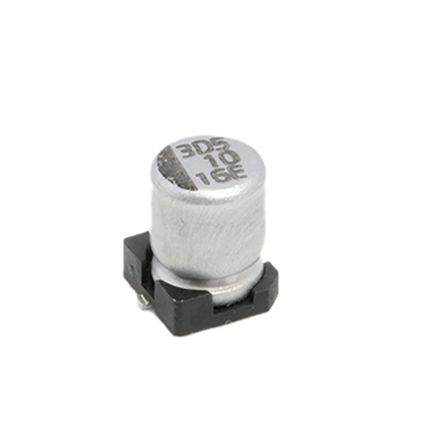

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。

庫存與訂購

庫存: 0
庫存獲取中，請稍候....

產品參數

參數類型 參數值
Mounting Surface Mount
Capacitance Value 10 uF
Voltage 16 Vdc
Tolerance 20 %
Equivalent Series Resistance 26.5 Ohm
Ripple Current 25 mA
Lifetime 2000 h
Product Diameter 4 mm
Product Height 5.5(Max) mm
Operating Temperature -40 to 85 °C
Construction Cylindrical
Standard Package Tape & Reel
EU RoHS Compliant
Maximum Operating Temperature 85
Leakage Current 3@2Min
Equivalent Series Resistance Type Standard
Equivalent Series Resistance 26.5
Lifetime 2000
Product Height 5.5(Max)
Packaging Tape and Reel
Ripple Current 25
Type Electrolytic
Product Diameter 4
Operating Temp Range -40C to 85C
Rad Hardened No
Failure Rate Not Required
Lead Diameter (nom) Not Required mm
Capacitance 10000000 pF
Tolerance (+ or -) 20%
DCL 3@2Min uA
ESR 26.5 ohm
Lead Spacing (nom) Not Required mm
Mounting Style Surface Mount
Product Length (mm) Not Required mm
Product Depth (mm) Not Required mm
Product Height (mm) 5.5 mm
Seated Plane Height Not Required mm
Size (mm) 4 X 5.5
Product Diameter (mm) 4 mm
rohs RoHS Compliant Part
引線節距 1mm
系列 NACE
電壓 16 V 直流
容差 ±20%
最高工作溫度 +85°C
容差 正 +20%
端子類型 表面安裝
高度 5.5mm
電容值 10 μF
最低工作溫度 -40°C
技術 電解
等值串聯電阻值 26.5Ω
泄漏電流 3 μA
壽命時間 2000h
尺寸 4 (Dia.) x 5.5mm
容差 負 -20%
Board Level Components Y
直徑 4mm
紋波電流 25mA
引線直徑 0.8mm
結構 圓柱形
