NCV887100D1R2G
DC DC Cntrlr Single-OUT Boost 3.2V to 40V Input 8-Pin SOIC N T/R
廠商型號:
NCV887100D1R2G
芯天下內部編號:
277-NCV887100D1R2G
生產廠商:
on semiconductor
描述:
DC DC Cntrlr Single-OUT Boost 3.2V to 40V Input 8-Pin SOIC N T/R
產品類別:
Power Management|DC to DC Controller

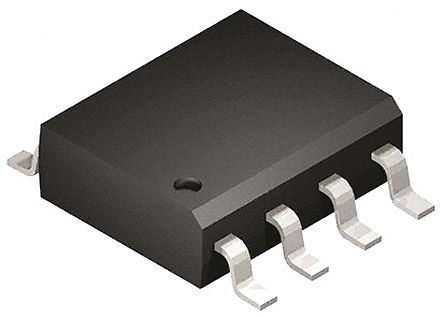

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Package | 8SOIC N |
| Type | Boost |
| Number of Outputs | 1 |
| Output Current | 0.8 A |
| Operating Supply Voltage | 3.2 to 40 V |
| Operating Temperature | -40 to 150 °C |
| Mounting | Surface Mount |
| Standard Package | Tape & Reel |
| Supplier Package | SOIC N |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 150 |
| Standard Package Name | SOIC |
| Package Height | 1.5(Max) |
| Switching Frequency | 187 |
| Input Voltage | 3.2 to 40 |
| Packaging | Tape and Reel |
| Output Current | 0.8 |
| Package Width | 4(Max) |
| Screening Level | Automotive |
| PCB | 8 |
| Package Length | 5(Max) |
| Minimum Operating Temperature | -40 |
| Pin Count | 8 |
| Lead Shape | Gull-wing |
| Duty Cycle | 90% |
| Flyback | No |
| Buck | No |
| Cuk | No |
| Boost | Yes |
| Isolated | No |
| PWM Type | Current Mode |
| Frequency - Max | 187kHz |
| Voltage - Supply | 3.2 V ~ 40 V |
| Inverting | No |
| Doubler | No |
| Divider | No |
| Package/Case | 8-SOIC (0.154", 3.90mm Width) |
| rohs | Lead free / RoHS Compliant |
| RoHS | RoHS Compliant |
| 最大輸出電流 | 100μA |
| 輸出數目 | 1 |
| 最高工作溫度 | +150 °C |
| 安裝類型 | 表面貼裝 |
| 最大輸出電壓 | 2.5 V |
| 高度 | 1.5mm |
| 封裝類型 | SOIC |
| 最低工作溫度 | -40 °C |
| 最高開關頻率 | 187 kHz |
| 最小輸出電壓 | 0.3 V |
| 寬度 | 4mm |
| 調節器功能 | 升壓控制器 |
| 最小輸入電壓 | 3.2 V |
| 引腳數目 | 8 |
| 長度 | 5mm |
| 輸出類型 | 可調整的 |
| 最大輸入電壓 | 40 V 直流 |
| 尺寸 | 5 x 4 x 1.5mm |
| Series | NCV8871 |
| Brand | ON Semiconductor |
