ND3FR16P-R
Coded Rotary Switches REAL HEXADECIMAL SMT
廠商型號:
ND3FR16P-R
芯天下內部編號:
240-ND3FR16P-R
生產廠商:
NKK Switches
描述:
Coded Rotary Switches REAL HEXADECIMAL SMT
產品類別:
Switches|DIP Switches|ND3

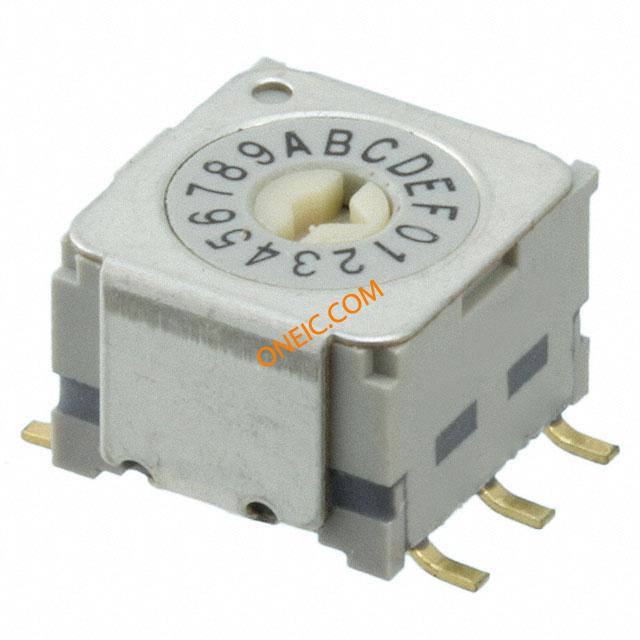

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Actuator Style | Flush Screwdriver |
| Electrical Life | 1250 |
| Product Length | 8.12 |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 85 |
| Contact Plating | Gold |
| Product Depth | 10 |
| Mounting | Surface Mount |
| Body Orientation | Straight |
| Product Height | 5.6 |
| Packaging | Tape and Reel |
| Maximum DC Voltage Rating | 5 |
| Terminal Pitch | 2.54 |
| Pole Throw Configuration | SP16T |
| Seal | Construction/(Actuator/Housing)/(... |
| Number of Positions | 16 |
| Minimum Operating Temperature | -25 |
| Maximum Current Rating | 0.1@5VDC |
| Mechanical Life | 1250 |
| Terminal Type | Gull Wing |
| Contact Material | Beryllium Copper |
| Washable | Yes |
| Actuator Type | Rotary for Tool |
| Mounting Type | Surface Mount |
| Circuit | Hexadecimal |
| Standard Package | 500 |
| Contact Rating @ Voltage | 0.1A @ 5VDC |
| Orientation | Top Actuated |
| Actuator Level | Flush |
| rohs | Lead free / RoHS Compliant |
| Factory Pack Quantity | 500 |
| Product Category | Coded Rotary Switches |
| Contact Rating | 100 mA at 5 V |
| Dielectric Strength | 250 Volts |
| Termination Style | Gull Wing, Upright Mount |
| Rotation Style | Clockwise, Counterclockwise |
| Actuator | Screwdriver |
| Terminal Arrangement | 3 x 3 |
| Output Code | Real |
| Part # Aliases | ND3-FR16P-TP |
| RoHS | RoHS Compliant |
| No. of Poles | :1 |
| No. of Switch Positions | :16 |
| Contact Current DC Max | :100mA |
| Contact Voltage DC Max | :5V |
| Weight (kg) | 0 |
| Tariff No. | 85365015 |
