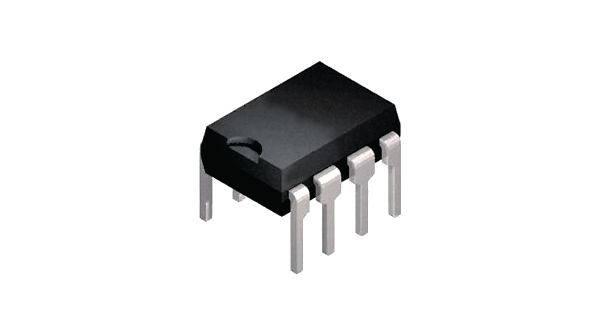

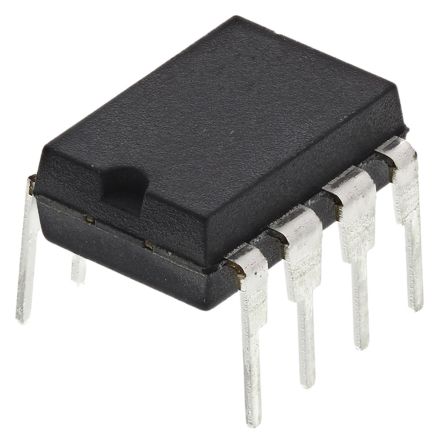

NE5534AP
OP Amp Single GP ±15V 8-Pin PDIP Tube
廠商型號:
NE5534AP
芯天下內部編號:
136-NE5534AP
生產廠商:
texas instruments
描述:
OP Amp Single GP ±15V 8-Pin PDIP Tube
產品類別:
Amplifiers|OP Amp
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Package | 8PDIP |
| Number of Channels per Chip | 1 |
| Type | General Purpose Amplifier |
| Typical Gain Bandwidth Product | 10 MHz |
| Typical Slew Rate | 13@±15V V/us |
| Maximum Supply Current | 8@±15V mA |
| Maximum Input Offset Voltage | 4@±15V mV |
| Maximum Input Bias Current | 1.5@±15V uA |
| Typical Input Noise Voltage Density | 5.5@±15V nV/rtHz |
| Minimum CMRR | 70 dB |
| Minimum Dual Supply Voltage | ±5 V |
| Mounting | Through Hole |
| Operating Temperature | 0 to 70 °C |
| Typical NonInverting Input Noise Current Density | 1.5@±15V pA/rtHz |
| Typical Voltage Gain | 100 dB |
| Standard Package | Rail / Tube |
| Manufacturer Type | Low Noise Amplifier |
| Rail to Rail | No |
| Package Width | 6.6(Max) |
| PCB | 8 |
| Maximum Dual Supply Voltage | ±15 |
| Maximum Input Bias Current | 1.5@±15V |
| EU RoHS | Compliant |
| Maximum Supply Current | 8@±15V |
| Typical Gain Bandwidth Product | 10 |
| Typical Voltage Gain | 100 |
| Power Supply Type | Dual |
| Minimum CMRR | 70 |
| Minimum Operating Temperature | 0 |
| Supplier Package | PDIP |
| Standard Package Name | PDIP |
| Maximum Operating Temperature | 70 |
| Minimum Dual Supply Voltage | ±5 |
| Typical Dual Supply Voltage | ±9|±12 |
| Shut Down Support | No |
| Package Length | 10.16(Max) |
| Pin Count | 8 |
| Maximum Input Offset Current | 0.3@±15V |
| Maximum Input Offset Voltage | 4@±15V |
| Package Height | 5.08(Max) - 0.51(Min) |
| Packaging | Tube |
| Typical Slew Rate | 13@±15V |
| Technology | Bipolar |
| Lead Shape | Through Hole |
| Current - Output / Channel | 38mA |
| Amplifier Type | General Purpose |
| Mounting Type | Through Hole |
| Supplier Device Package | 8-PDIP |
| Gain Bandwidth Product | 10MHz |
| Current - Supply | 4mA |
| Voltage - Supply, Single/Dual (±) | 10 V ~ 30 V, ±5 V ~ 15 V |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Slew Rate | 13 V/μs |
| Current - Input Bias | 500nA |
| Voltage - Input Offset | 500μV |
| Number of Circuits | 1 |
| Other Names | 296-7042-5 |
| rohs | Lead free / RoHS Compliant |
| Factory Pack Quantity | 50 |
| Supply Current | 4 mA |
| Operating Supply Voltage | 10 V to 30 V, +/- 5 V to +/- 15 V |
| Product Category | Operational Amplifiers - Op Amps |
| Common Mode Rejection Ratio - Min | 70 dB |
| Unit Weight | 0.015535 oz |
| Number of Channels | 1 Channel |
| Maximum Operating Temperature | + 70 C |
| Input Bias Current - Max | 1.5 uA |
| Shutdown | No Shutdown |
| Maximum Dual Supply Voltage | +/- 15 V |
| RoHS | RoHS Compliant |
| Output Current | 38 mA |
| Series | NE5534A |
| Mounting Style | Through Hole |
| Input Offset Voltage | 4 mV |
| Minimum Operating Temperature | 0 C |
| Operating Temp Range | 0C to 70C |
| Number of Elements | 1 |
| Common Mode Rejection Ratio | 70 dB |
| Operating Temperature Classification | Commercial |
| Dual Supply Voltage (Typ) | ?9/?12 V |
| Power Supply Requirement | Dual |
| Dual Supply Voltage (Min) | ?5 V |
| Rail/Rail I/O Type | No |
| Shut Down Feature | No |
| Rad Hardened | No |
| Dual Supply Voltage (Max) | ?15 V |
| Voltage Gain in dB | 100 dB |
| Unity Gain Bandwidth Product (Typ) | 10MHz |
| Input Bias Current | 1500 nA |
| Single Supply Voltage (Min) | Not Required V |
| Single Supply Voltage (Max) | Not Required V |
| Single Supply Voltage (Typ) | Not Required V |
| Package Type | PDIP |
| Unity Gain Bandwidth Product | 10MHz |
| Op Amp Type | :Low Noise |
| No. of Amplifiers | :1 |
| Supply Voltage Range | :± 5V to ± 15V |
| Amplifier Case Style | :DIP |
| No. of Pins | :8 |
| Bandwidth | :10MHz |
| Operating Temperature Min | :0°C |
| Operating Temperature Max | :70°C |
| MSL | :- |
| SVHC | :No SVHC (20-Jun-2013) |
| Base Number | :5534 |
| Device Marking | :NE5534AP |
| IC Generic Number | :5534 |
| IC Temperature Range | :Commercial |
| Input Offset Voltage Max | :5mV |
| Logic Function Number | :5534 |
| Operating Temperature Range | :0°C to +70°C |
| Supply Voltage + Nom | :15V |
| Supply Voltage Max | :15V |
| Supply Voltage Min | :5V |
| Weight (kg) | 0.000833 |
| Tariff No. | 85423300 |
| Case | DIP8 |
| Multiplicity | 1 |
| Transmission band frequency | 10MHz |
| Voltage rise speed | 13V/μs |
| Gross weight | 0.84 g |
| Operating temperature | 0...70°C |
| Supply voltage | 5...15V DC |
| Integrated circuit type | operational amplifier |
| Collective package [pcs] | 50 |
| spg | 50 |
| Status | ACTIVE |
| Temp (oC) | 0 to 70 |
| Package | Pins | PDIP?(P) | 8 |
| Package QTY | Carrier | 50 | TUBE |
| New Flag | |
| Functional Diagram | alt_slos070d.gif |
| CMRR | 70 |
| GBW | 10 |
| Reference Design | |
| HiRel | |
| Package Group | PDIP SOIC |
| BW @ Acl | |
| Vs | 30 |
| Iib | |
| Additional Features | |
| Rail-to-Rail | |
| IIB | 1500000 |
| Datasheet | SLOS070D |
| Architecture | |
| Vn at Flatband | |
| Iq per channel | 8 |
| TI Design | |
| Vos (Offset Voltage @ 25C) | 4 |
| Rating | Catalog |
| Offset Drift | |
| Vn at 1kHz | 3.5 |
| Total Supply Voltage | 10 |
| Acl, min spec gain | |
| Settling Time (01%) | |
| Offset Voltage Drift (+/-) | |
| Io |
