OPA37GU
OP Amp Single GP ±22V 8-Pin SOIC Tube
廠商型號:
OPA37GU
芯天下內部編號:
136-OPA37GU
生產廠商:
texas instruments
描述:
OP Amp Single GP ±22V 8-Pin SOIC Tube
產品類別:
Amplifiers|OP Amp

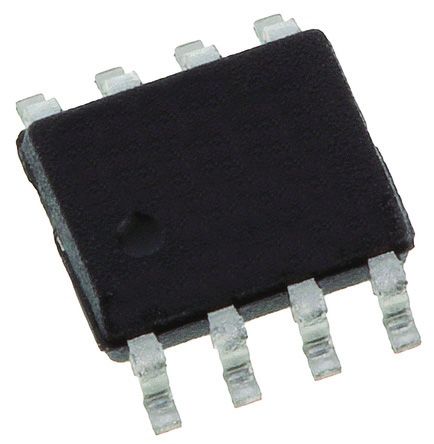

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Package | 8SOIC |
| Number of Channels per Chip | 1 |
| Type | General Purpose Amplifier |
| Typical Gain Bandwidth Product | 63 MHz |
| Typical Slew Rate | 11.9@±15V V/us |
| Maximum Input Offset Voltage | 0.1@±15V mV |
| Maximum Input Bias Current | 0.08@±15V uA |
| Typical Input Noise Voltage Density | 3.8@±15V nV/rtHz |
| Minimum CMRR | 100 dB |
| Minimum Dual Supply Voltage | ±4 V |
| Mounting | Surface Mount |
| Operating Temperature | -40 to 85 °C |
| Typical NonInverting Input Noise Current Density | 1.7@±15V pA/rtHz |
| Typical Voltage Gain | 124 dB |
| Standard Package | Rail / Tube |
| Manufacturer Type | Low Offset Voltage Amplifier |
| Rail to Rail | No |
| Package Width | 4(Max) |
| PCB | 8 |
| Maximum Power Dissipation | 500 |
| Maximum Dual Supply Voltage | ±22 |
| Maximum Input Bias Current | 0.08@±15V |
| EU RoHS | Compliant |
| Typical Gain Bandwidth Product | 63 |
| Typical Voltage Gain | 124 |
| Power Supply Type | Dual |
| Minimum CMRR | 100 |
| Minimum Operating Temperature | -40 |
| Supplier Package | SOIC |
| Standard Package Name | SOIC |
| Maximum Operating Temperature | 85 |
| Minimum Dual Supply Voltage | ±4 |
| Typical Dual Supply Voltage | ±15 |
| Shut Down Support | No |
| Package Length | 5(Max) |
| Pin Count | 8 |
| Maximum Input Offset Current | 0.075@±15V |
| Maximum Input Offset Voltage | 0.1@±15V |
| Package Height | 1.5(Max) |
| Packaging | Tube |
| Typical Slew Rate | 11.9@±15V |
| Lead Shape | Gull-wing |
| Current - Output / Channel | 25mA |
| Amplifier Type | General Purpose |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-SOIC |
| Current - Supply | 3.3mA |
| Voltage - Supply, Single/Dual (±) | 8 V ~ 44 V, ±4 V ~ 22 V |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Slew Rate | 11.9 V/μs |
| Current - Input Bias | 15nA |
| Voltage - Input Offset | 25μV |
| Number of Circuits | 1 |
| Gain Bandwidth Product | 63MHz |
| rohs | Lead free / RoHS Compliant |
| Factory Pack Quantity | 75 |
| Supply Current | 5.7 mA |
| Operating Supply Voltage | +/- 4 V to +/- 22 V |
| Product Category | Operational Amplifiers - Op Amps |
| Common Mode Rejection Ratio - Min | 100 dB |
| Unit Weight | 0.002677 oz |
| Number of Channels | 1 Channel |
| Maximum Operating Temperature | + 85 C |
| Input Bias Current - Max | 80 nA |
| Shutdown | No Shutdown |
| Maximum Dual Supply Voltage | +/- 22 V |
| RoHS | RoHS Compliant |
| Series | OPA37 |
| Mounting Style | SMD/SMT |
| Input Offset Voltage | 100 uV |
| Minimum Operating Temperature | - 40 C |
| Technology | CMOS |
| Power Dissipation | 0.5 W |
| Operating Temp Range | -40C to 85C |
| Package Type | SOIC |
| Number of Elements | 1 |
| Common Mode Rejection Ratio | 100 dB |
| Operating Temperature Classification | Industrial |
| Dual Supply Voltage (Typ) | ?15 V |
| Input Bias Current | 80 nA |
| Power Supply Requirement | Dual |
| Dual Supply Voltage (Min) | ?4 V |
| Rail/Rail I/O Type | No |
| Shut Down Feature | No |
| Rad Hardened | No |
| Single Supply Voltage (Min) | Not Required V |
| Single Supply Voltage (Max) | Not Required V |
| Single Supply Voltage (Typ) | Not Required V |
| Dual Supply Voltage (Max) | ?22 V |
| Voltage Gain in dB | 124 dB |
| Unity Gain Bandwidth Product | 63MHz |
| Op Amp Type | :Low Noise |
| No. of Amplifiers | :1 |
| Supply Voltage Range | :± 4V to ± 22V |
| Amplifier Case Style | :SOIC |
| No. of Pins | :8 |
| Bandwidth | :63MHz |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :85°C |
| MSL | :MSL 3 - 168 hours |
| SVHC | :No SVHC (20-Jun-2013) |
| Base Number | :37 |
| IC Generic Number | :37 |
| Input Offset Voltage Max | :220μV |
| Operating Temperature Range | :-40°C to +85°C |
| Supply Voltage + Nom | :15V |
| Supply Voltage Max | :22V |
| Supply Voltage Min | :4V |
| Weight (kg) | 0.000075 |
| Tariff No. | 85423300 |
| Case | SO8 |
| Multiplicity | 1 |
| Transmission band frequency | 63MHz |
| Voltage rise speed | 11.9V/μs |
| Gross weight | 1.12 g |
| Operating temperature | -40...85°C |
| Number of channels | 1 |
| Supply voltage | 4...22V DC |
| Integrated circuit type | operational amplifier |
| Collective package [pcs] | 75 |
| spg | 75 |
| Status | ACTIVE |
| Temp (oC) | -40 to 85 |
| Package | Pins | SOIC?(D) | 8 |
| Device Marking | View |
| Package QTY | Carrier | 75 | TUBE |
| New Flag | |
| Functional Diagram | |
| CMRR | |
| GBW | 63 |
| Reference Design | |
| HiRel | |
| Package Group | PDIP SOIC |
| BW @ Acl | |
| Vs | 44 |
| Iib | |
| Additional Features | |
| Rail-to-Rail | |
| IIB | |
| Datasheet | SBOS135C |
| Architecture | Voltage Feedback |
| Vn at Flatband | |
| Iq per channel | 5.7 |
| TI Design | |
| Vos (Offset Voltage @ 25C) | |
| Rating | Catalog |
| Offset Drift | |
| Vn at 1kHz | |
| Total Supply Voltage | |
| Acl, min spec gain | |
| Settling Time (01%) | |
| Offset Voltage Drift (+/-) | |
| Io |
