PEC11-4020F-S0024
Encoders INCREMENTAL ENCODER 12MM
廠商型號:
PEC11-4020F-S0024
芯天下內部編號:
18-PEC11-4020F-S0024
生產廠商:
Bourns
描述:
Encoders INCREMENTAL ENCODER 12MM
產品類別:
Sensors, Transducers|Encoders|PEC11

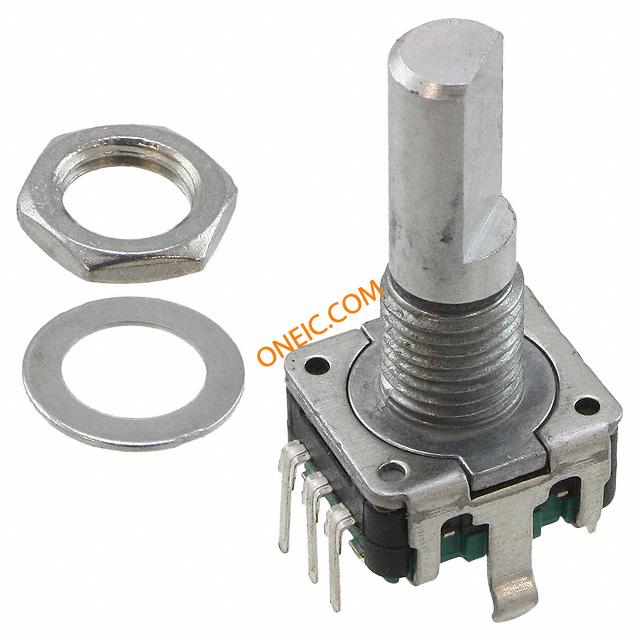

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Mounting | Through Hole |
| Shaft Style | Flat |
| Programmable | No |
| Shaft Diameter | 6 |
| Maximum Operating Speed | 60r/min |
| EU RoHS | Compliant |
| Shaft Material | Metal |
| Number of Channels | 2 |
| Minimum Operating Temperature | -30 |
| Mechanical Life | 30000 |
| Terminal Type | PC Pins |
| Product Length | 14 |
| Encoder Code | Quadrature |
| Maximum Operating Temperature | 70 |
| IP Rating | IP40 |
| Body Orientation | Straight |
| Built-In Switch | Yes |
| Motion | Rotary |
| Shock Rating | 100G |
| Encoder Signal | Digital Square Wave |
| Maximum Operating Torque | 2.7oz.in |
| Pulses per Revolution | 24 |
| Product Depth | 12.5 |
| Encoder Reading | Incremental |
| Modular Kit Encoder | No |
| Product Height | 26.5 |
| Typical Operating Supply Voltage | 5VDC |
| Detents | No |
| Index output | Not Indexed |
| Rotational Life (Cycles Min) | 30K |
| Mounting Type | Panel, PCB Through Hole |
| Termination Style | PC Pin |
| Encoder Type | Mechanical |
| Output Type | Quadrature (Incremental) |
| Detent | No |
| Actuator Type | 6mm Dia Flatted End |
| Standard Package | 75 |
| Built in Switch | Yes |
| Other Names | PEC114020FS0024 |
| Orientation | Vertical |
| rohs | Lead free / RoHS Compliant |
| No. of Channels | :2 |
| Rotational Speed Max | :60rpm |
| Encoder Resolution | :24CPR |
| No. of Detents | :0 |
| No. of Pins | :3 |
| Operating Temperature Max | :70°C |
| Operating Temperature Min | :-30°C |
| Series | :PEC11 |
| Weight (kg) | 0.005 |
| Tariff No. | 85364900 |
