PESD5V0V4UW.115

ESD Suppressor Diode Arrays 12KV 5-Pin SOT-665 T/R

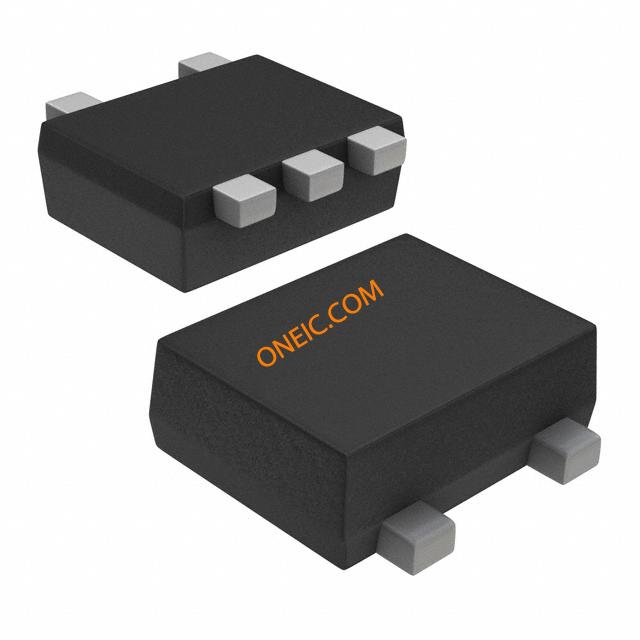

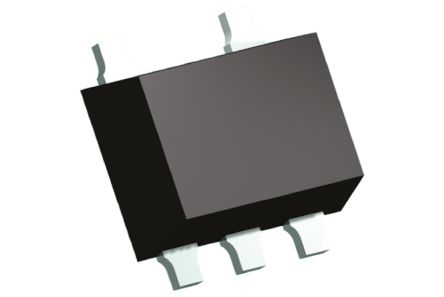

Thumbnail PESD5V0V4UW.115 Thumbnail PESD5V0V4UW.115
廠商型號: PESD5V0V4UW.115
芯天下內部編號: 229-PESD5V0V4UW-115
生產廠商:
nxp semiconductors nxp semiconductors
描述: ESD Suppressor Diode Arrays 12KV 5-Pin SOT-665 T/R
產品類別: Discrete|Diode|ESD Suppressors
客戶編號:
規格書: 查看PDF
瀏覽次數: 1

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。

庫存與訂購

庫存: 0
庫存獲取中，請稍候....

產品參數

參數類型 參數值
Type Diode Arrays
Pin Count 5
Direction Type Uni-Directional
Maximum Clamping Voltage 13 V
Number of Elements per Chip 4
ESD Protection Voltage 12@Contact Disc/10@HBM kV
Maximum Working Voltage 5 V
Maximum Leakage Current 0.025 uA
Capacitance Value 15 pF
Minimum Operating Temperature -65 °C
Maximum Operating Temperature 150 °C
Mounting Surface Mount
Standard Package Tape & Reel
Supplier Package SOT-665
Standard Package Name SC-89
EU RoHS Compliant
Maximum Operating Temperature 150
Configuration Quad Common Anode
Package Height 0.6(Max)
Maximum Clamping Voltage 13
Packaging Tape and Reel
Maximum Working Voltage 5
Capacitance Value 15
Package Width 1.3(Max)
PCB 5
Package Length 1.7(Max)
Minimum Operating Temperature -65
Maximum Leakage Current 0.025
Maximum ESD Protection Voltage 12@Contact Disc/10@HBM
Voltage - Clamping (Max) @ Ipp 13V
Mounting Type Surface Mount
Supplier Device Package SOT-665
Voltage - Breakdown (Min) 6.4V
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 5V (Max)
Applications General Purpose
Operating Temperature -65°C ~ 150°C
Capacitance @ Frequency 12pF @ 1MHz
Power Line Protection No
Power - Peak Pulse 16W
Current - Peak Pulse (10/1000μs) 1.5A (8/20μs)
Package/Case SOT-665
rohs Lead free / RoHS Compliant
Other Names 568-7361-1
Polarity Unidirectional
Clamping Voltage 13 V
Product Category TVS Diode Arrays
Dimensions 1.3(Max) mm W x 1.7(Max) mm L
Factory Pack Quantity 4000
Operating Voltage 5 V
Breakdown Voltage 6.4 V
RoHS RoHS Compliant
Package / Case SOT-665
Peak Surge Current 1.5 A
Part # Aliases PESD5V0V4UW T/R
Peak Pulse Power Dissipation 16 W
最大峰值脈沖電流 1.5A
高度 0.6mm
ESD保護 是
最高工作溫度 +150 °C
最大反向待機電壓 5V
最小擊穿電壓 6.4V
安裝類型 表面貼裝
峰值脈沖功率耗散 16W
最低工作溫度 -65 °C
最大反向漏電流 0.025μA
方向類型 單向
長度 1.7mm
寬度 1.3mm
封裝類型 SOT
最大鉗位電壓 13V
引腳數目 5
尺寸 1.7 x 1.3 x 0.6mm
測試電流 1mA
每片芯片元件數目 4
