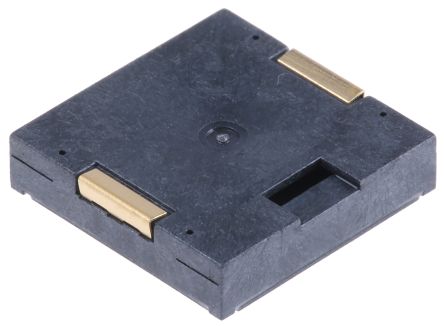

PKLCS1212E2000-R1
Audio Sounder Piezo 3Vp-p Solder Pad Surface Mount
廠商型號:
PKLCS1212E2000-R1
芯天下內部編號:
233-PKLCS1212E2000-R1
生產廠商:
murata electronics
描述:
Audio Sounder Piezo 3Vp-p Solder Pad Surface Mount
產品類別:
Sensors and Transducers|Audio Sensors and Transducers|Audio Indicators and Alerts
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Maximum Resonant Frequency | 2000(Typ) Hz |
| Technology | Piezo |
| Minimum Sound Pressure | 70 dBA |
| Tone Mode | External Drive |
| Type | Sounder |
| Termination Method | Solder Pad |
| Mounting | Surface Mount |
| Typical Operating Supply Voltage | 3 Vp-p |
| Product Height | 3 mm |
| Product Length | 12 mm |
| Standard Package | Tape & Reel |
| Product Category | Speakers & Transducers |
| RoHS | RoHS Compliant |
| Product | Speakers |
| Frequency | 2 kHz |
| Sound Pressure Level | 70 dB |
| Shape | Square |
| Termination Style | SMD/SMT |
| Length | 12 mm |
| Width | 12 mm |
| Height | 3 mm |
| Operating Temperature Range | - 20 C to + 70 C |
| Operating Voltage | 25 V |
| Packaging | Reel |
| Series | PK |
| Factory Pack Quantity | 1000 |
| Subcategory | Audio Indicator and Alerts |
| Lead Time | 70 Days |
| Mounting Type | Surface Mount |
| Voltage - Rated | 3Vp-p |
| Washable | No |
| Operating Mode | Continuous |
| Size / Dimension | Square - 12.00mm L x 12.00mm W x 3.00mm H |
| Input Type | peak-peak Signal |
| Voltage Range | 25V (Max) |
| Termination | Solder Pads |
| Operating Temperature | -20°C ~ 70°C |
| Driver Circuitry | Transducer, Externally Driven |
| Other Names | 490-5260-1 |
| rohs | Lead free / RoHS Compliant |
| DELETED | Compliant |
| Transducer Function | :Sounder |
| Supply Voltage Max | :25V |
| Sound Level SPL | :70dB |
| Sound Level Distance | :10cm |
| Resonant Frequency | :2kHz |
| External Height | :3mm |
| External Width | :12mm |
| SVHC | :No SVHC (20-Jun-2013) |
| Operating Temperature Max | :70°C |
| Operating Temperature Min | :-20°C |
| Termination Type | :SMD |
| Weight (kg) | 0.000361 |
| Tariff No. | 85318095 |
| External Depth | :12mm |
| External Length / Height | :3mm |
