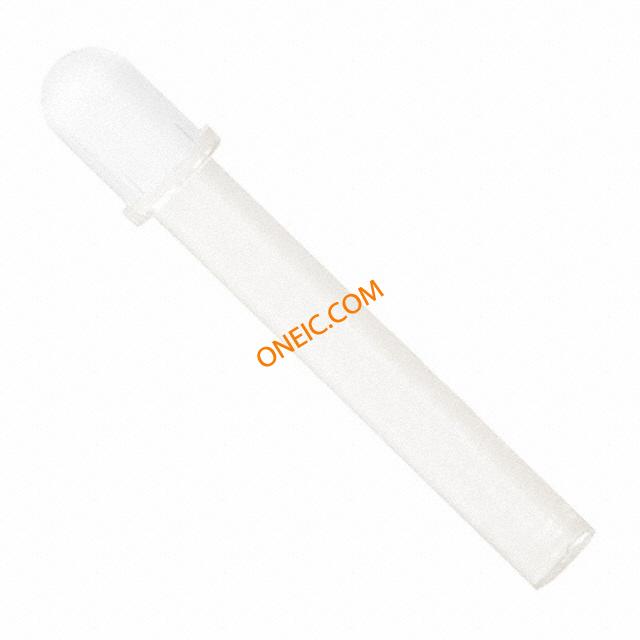

PLP5-1000
LED Light Pipes Light Pipe Rear 5mm Round Lens
廠商型號:
PLP5-1000
芯天下內部編號:
15-PLP5-1000
生產廠商:
Bivar
描述:
LED Light Pipes Light Pipe Rear 5mm Round Lens
產品類別:
Optoelectronics|LED Lighting|LED Bulbs & Modules|LED Indication|LED Light Pipes
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Category | LED Light Pipes |
| RoHS | RoHS Compliant |
| Product | Light Pipes |
| Color | Clear |
| Body Shape | Cylindrical |
| Body Length | 1 in |
| Material | Polycarbonate (PC) |
| Mounting Style | Through Hole |
| Packaging | Bulk |
| Mounting Type | Panel Mount, Press Fit, Rear |
| Lens Style/Size | Round with Domed Top, 5mm |
| Standard Package | 100 |
| Configuration | Single |
| Type | Rigid |
| rohs | Lead free / RoHS Compliant |
| Length | 33.5mm |
| Lens Colour | Clear |
| Multiplicity | 1 |
| LED accessories type | lightpipe for LED |
| Shape | round |
| Gross weight | 0.61 g |
| Front | convex |
| Holder variant | straight |
| LEDs' features | parallel lighting |
| Face dimensions | ?5mm |
| Collective package [pcs] | 100 |
| spg | 100 |
| 系列 | PLP5 |
| 透鏡樣式/尺寸 | Round with Domed Top, 5mm |
| 配置 | Single |
| 裝配類型 | Panel Mount, Press Fit, Rear |
| 類型 | Rigid |
| 顏色 | Clear |
| 透鏡形狀 | 圓頂 |
| 柔性/剛性 | 剛性 |
| 外徑 | 5mm |
| 安裝類型 | 后面板安裝 |
| 包括 LED | 否 |
| 配置（行 x 列） | 1 x 1 |
| 方向 | 直角 |
| 排 | 1 |
| 尺寸 | 5.8 (Dia.) x 33.5mm |
| 列 | 1 |
| 線路數目 | 1 |
| 長度 | 33.5mm |
| 透鏡顏色 | 透明 |
