PRMA1C05B
RELAY REED SPDT 250MA 5V
廠商型號:
PRMA1C05B
芯天下內部編號:
81-PRMA1C05B
生產廠商:
Coto Technology
描述:
RELAY REED SPDT 250MA 5V
產品類別:
Relays|Signal Relays, Up to 2 Amps|PRMA

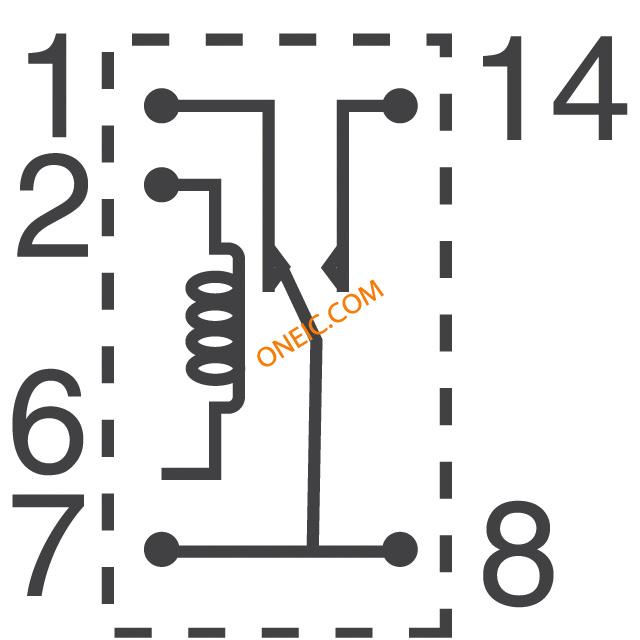

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Coil Current | 25mA |
| Coil Voltage | 5VDC |
| Turn On Voltage (Max) | 3.75 VDC |
| Features | Diode |
| Coil Type | Non Latching |
| Turn Off Voltage (Min) | 0.8 VDC |
| Coil Power | 125 mW |
| Contact Form | SPDT (1 Form C) |
| Relay Type | Reed |
| Termination Style | PC Pin |
| Switching Voltage | 100VAC, 100VDC - Max |
| Release Time | 3ms |
| Packaging | Tube |
| Operating Temperature | -40°C ~ 80°C |
| Operate Time | 2ms |
| Contact Rating (Current) | 250mA |
| Standard Package | 25 |
| Mounting Type | Through Hole |
| Coil Resistance | 200 Ohms |
| SubCategory | Reed Relay |
| Mounting | PC Board |
| Switching Current | 0.5 Amps |
| Control Off Voltage (Min) | 0.8 VDC |
| Contact Configuration | 1C SPDT |
| MainCategory | Relays |
| Contact Rating @ Voltage | 0.25A @ 100 VAC/DC |
| Control On Voltage (Max) | 3.75 VDC |
