PS000D000
AC Power Entry Modules Snap-in, Dual Fuse Unfiltered
廠商型號:
PS000D000
芯天下內部編號:
35-PS000D000
生產廠商:
TE Connectivity / Corcom
描述:
AC Power Entry Modules Snap-in, Dual Fuse Unfiltered
產品類別:
Connectors, Interconnects|Power Entry Connectors - Inlets, Outlets, Modules|P, Chameleon, Corcom
客戶編號:
規格書:
查看PDF

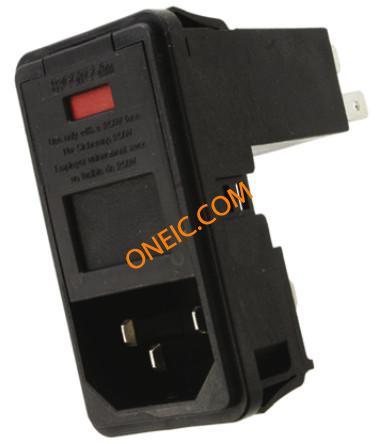

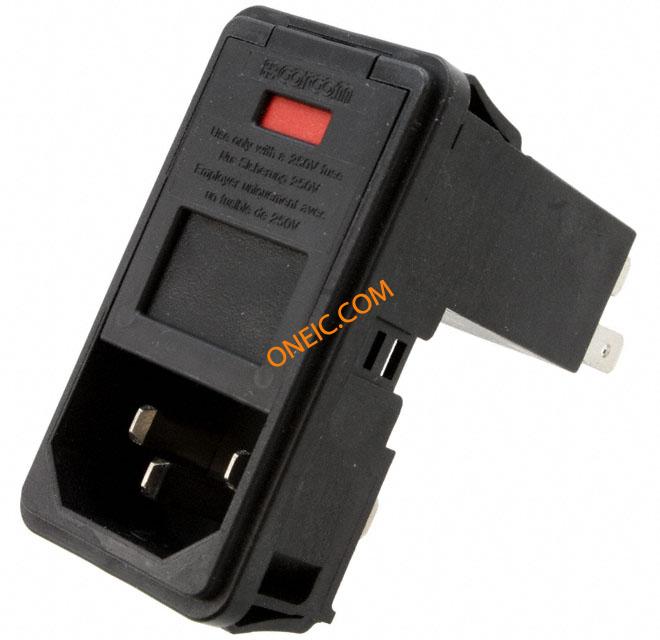

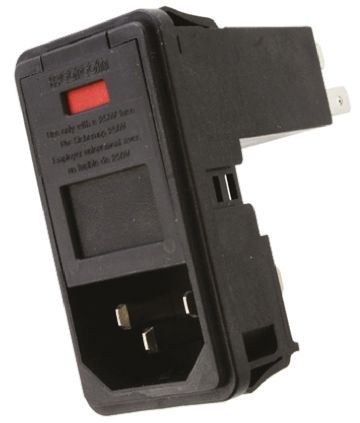

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Industry Aliases | 6609101-2, PS000D000 |
| Subcategory | Power Entry Module |
| Lead Time | 42 Days |
| Features | Fuse Holder |
| Mounting Type | Panel Mount, Snap-In |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Connector Type | Receptacle, Male Pins - Module |
| Number of Positions | 3 |
| Current | 10A |
| Fuse Drawer | Included |
| Voltage | 250V |
| Standard Package | 16 |
| Connector Style | IEC 320-C14 |
| Other Names | 6609101-2 |
| rohs | Lead free / RoHS Compliant |
| Current Rating | 10A |
| Gender | Male |
| Number of Fuses | 2 |
| Operating Frequency | 50/60Hz |
| Switch Type | 2 Pole |
| Termination Method | Faston |
| Voltage Rating | 250 V ac |
| Product | Inlets |
| Product Category | AC Power Entry Modules |
| Fused | Yes |
| Filtered | No |
| Operating Temperature Range | - 10 C to + 40 C |
| Mounting Style | Snap In |
| Switch Function | Not Switched |
| Filter Type | EMI/RFI Filter |
| Part # Aliases | 6609101-2 |
| RoHS | RoHS Compliant |
| Brand/Series | PSeries |
| Current,Leakage | 0.25/0.5mA |
| Current,Rating | 10A |
| CutOut,Panel | 1.06×2.201,1.06×2.213" |
| FilterType | IEC |
| Frequency | 50/60Hz |
| HipotRating,LinetoGround | 2250VDC |
| HipotRating,LinetoLine | 1450VDC |
| MountMethod | Front |
| MountingType | Snap-In |
| NumberofPoles | 3 |
| PEMType | Fuse |
| SwitchType | DPST |
| Termination | FastonTab |
| Thickness,Panel | 0.031-0.079,0.083-0.114" |
| TycoPartNumber | 6609101-2 |
| Type | Fuse |
| Version | Standard |
| Voltage,Rating | 250VAC |
| 連接器類型 | 公插 |
| 工作頻率 | 50/60Hz |
| 熔斷器數目 | 2 |
| 開關類型 | 沒有 |
| 安裝類型 | 嵌入式 |
| 端接方法 | 鏟形 |
| IEC 連接器類型 | C14 |
| 額定電壓 | 250 V 交流 |
| 額定電流 | 10A |
| 安裝方式 | 扣入式 |
| Ground Choke Option | No |
| 電壓（最大值）?(VAC) | 250 |
| 保險絲選項 | 雙 |
| Ground Option | None |
| Panel Thickness Range?(mm) | .127 – 1 |
| 屏蔽種類 | 無 |
| 擴展選項 | 無 |
| Input Type | IEC |
| 濾波器類型 | 電源輸入模塊 |
| 安裝角度 | 垂直 |
| 輸入電壓選擇 | 單一交流 |
| Voltage Selection | Single |
| 輸出類型 | 187 快速連接端子 |
| 工作溫度范圍?(°C) | -10 – 40 |
