PT481E00000F
Phototransistors Darlington output Ver of PT480 25mA
廠商型號:
PT481E00000F
芯天下內部編號:
317-PT481E00000F
生產廠商:
Sharp Microelectronics
描述:
Phototransistors Darlington output Ver of PT480 25mA
產品類別:
Optoelectronics|Optical Detectors and Sensors|Phototransistors

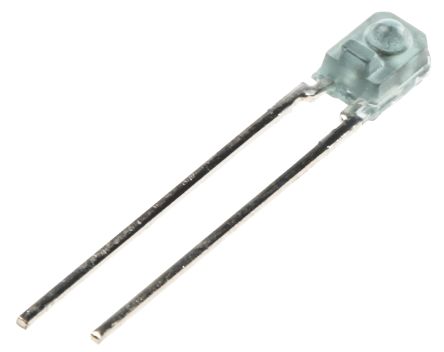

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Category | Phototransistors |
| RoHS | RoHS Compliant |
| Maximum Power Dissipation | 75 mW |
| Maximum Dark Current | 1 uA |
| Collector- Emitter Voltage VCEO Max | 35 V |
| Fall Time | 70 us |
| Maximum Operating Temperature | + 85 C |
| Minimum Operating Temperature | - 25 C |
| Rise Time | 80 us |
| Factory Pack Quantity | 2000 |
| Type | Phototransistor |
| Life | Obsolete |
| Current - Dark (Id) (Max) | 1mA |
| Current - Collector (Ic) (Max) | 50mA |
| Orientation | Side View |
| Mounting Type | Through Hole |
| Series | * |
| Voltage - Collector Emitter Breakdown (Max) | 35V |
| Viewing Angle | 70° |
| Power - Max | 75mW |
| Standard Package | 50 |
| Wavelength | 800nm |
| Other Names | 425-2382-5 |
| Package/Case | Radial |
| rohs | Lead free / RoHS Compliant |
| 極性 | NPN |
| 典型上升時間 | 80000ns |
| 最大光電流 | 25000μA |
| 安裝類型 | 通孔安裝 |
| 半感光角度 | 26 ° |
| 高度 | 4mm |
| 檢測到的最小波長 | 800nm |
| 寬度 | 2.95mm |
| 封裝類型 | 側面觀看者 |
| 針數目 | 2 |
| 典型下降時間 | 70000ns |
| 長度 | 3mm |
| 通道數目 | 1 |
| 尺寸 | 3 x 2.95 x 4mm |
| 最大暗電流 | 1000nA |
| 集電極電流 | 50mA |
相似產品
| 型號 | 廠商 | 描述 | 操作 |
|---|---|---|---|
| PT481 | Sharp | Photodarlington Chip 800nm 2-Pin | 查看詳情 |
| PT481FE0000F | Sharp Microelectronics | Phototransistors PT481 w/ Visible lite cut-off 860nm | 查看詳情 |
