PTH08000WAZT
Module DC-DC 1-OUT 0.9V to 5.5V 2.25A 6-Pin DIP Module T/R
廠商型號:
PTH08000WAZT
芯天下內部編號:
136-PTH08000WAZT
生產廠商:
texas instruments
描述:
Module DC-DC 1-OUT 0.9V to 5.5V 2.25A 6-Pin DIP Module T/R
產品類別:
Power Supplies|DC to DC Power Supply

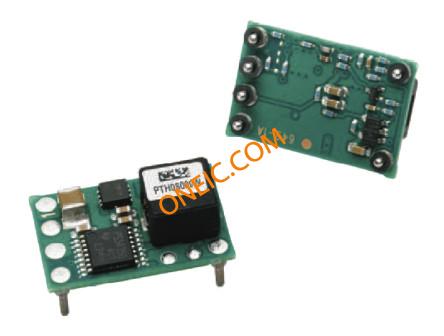

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Package | 6DIP Module |
| Type | Step Down |
| Output Current | 2.25 A |
| Output Voltage | 0.9 to 5.5 V |
| Input Voltage | 4.5 to 14 V |
| Number of Outputs | 1 |
| Switching Regulator | Yes |
| Standard Package | Tape & Reel |
| Product Category | DC/DC Converters |
| RoHS | RoHS Compliant |
| Product | Non-Isolated / POL |
| Input Voltage Range | 4.5 V to 14 V |
| Output Voltage (Channel 1) | 0.9 V to 5.5 V |
| Output Current (Channel 1) | 2.25 A |
| Mounting Style | SMD/SMT |
| Package / Case Size | Surface Mount Module |
| Operating Temperature Range | - 40 C to + 85 C |
| Packaging | Reel |
| Series | PTH08000W |
| Factory Pack Quantity | 250 |
| Supplier Package | DIP Module |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 85 |
| Standard Package Name | DIP Module |
| Package Height | 8.25 |
| Mounting | Surface Mount |
| Output Voltage | 0.9 to 5.5 |
| Output Current | 2.25 |
| Package Width | 12.57 |
| Isolation | Non-Isolated |
| PCB | 6 |
| Package Length | 18.92 |
| Minimum Operating Temperature | -40 |
| Pin Count | 6 |
| Lead Shape | Ball |
| Features | Remote On/Off, OCP, OTP, UVLO |
| Mounting Type | Surface Mount |
| Voltage - Output 1 | 0.9 ~ 5.5 V |
| Size / Dimension | 0.75" L x 0.50" W x 0.36" H (19.1mm x 12.7mm x 9.1mm) |
| Efficiency | 93.5% |
| Current - Output (Max) | 2.25A |
| Voltage - Input (Max) | 14V |
| Package / Case | 6-SMD Module |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Input (Min) | 4.5V |
| Power (Watts) - Manufacture Series | 12W |
| Power (Watts) - Max | 12.4W |
| rohs | Lead free / RoHS Compliant |
| Dimensions | 18.92 x 12.57 x 8.25mm |
| Height | 8.25mm |
| Length | 18.92mm |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -40 °C |
| Package Type | DIP Module |
| Regulator Function | Buck Controller |
| Width | 12.57mm |
| Output Voltage-Channel 1 | 0.9 V to 5.5 V |
| Output Current-Channel 1 | 2.25 A |
| Operating Temperature (Max) | 85C |
| Operating Temperature (Min) | -40C |
| Screening Level | Industrial |
| Rad Hardened | No |
| Product Length (mm) | 18.92 mm |
| Product Depth (mm) | 12.57 mm |
| Product Height (mm) | 8.25 mm |
| Status | ACTIVE |
| Temp (oC) | -40 to 85 |
| Package | Pins | Surface Mount Module?(EUT) | 6 |
| Package QTY | Carrier | 250 | SMALL T&R |
| New Flag | |
| Switching Frequency | |
| Functional Diagram | |
| Vout | 5.5 |
| Brand | POLA |
| Package Group | Surface Mount Module Through-Hole Module |
| Reference Design | |
| Duty Cycle | |
| Iout | 2.25 |
| Switch Current Limit | |
| Datasheet | SLTS248B |
| Special Features | Enable Output Discharge Tracking |
| TI Design | |
| Soft Start | Fixed |
| Iq | |
| Vin | 14 |
| Regulated Outputs | 1 |
| 輸出數目 | 1 |
| Board Level Components | Y |
| 最高工作溫度 | +85°C |
| 開關調節器 | 是 |
| 安裝類型 | 通孔 |
| 封裝類型 | DIP 模塊 |
| 最低工作溫度 | -40°C |
| 高度 | 8.25mm |
| 寬度 | 12.57mm |
| 調節器功能 | 降壓控制器 |
| 引腳數目 | 6 |
| 長度 | 18.92mm |
| 尺寸 | 18.92 x 12.57 x 8.25mm |
