PVZ2A105C04R00
Res Carbon Film Trimmer 1M Ohm 30% 1/20W 1(Elec)/1(Mech)Turn (2.1 X 2.7 X 2mm) J-Hook SMD T/R
廠商型號:
PVZ2A105C04R00
芯天下內部編號:
233-PVZ2A105C04R00
生產廠商:
murata electronics
描述:
Res Carbon Film Trimmer 1M Ohm 30% 1/20W 1(Elec)/1(Mech)Turn (2.1 X 2.7 X 2mm) J-Hook SMD T/R
產品類別:
Resistor|Resistor Trimmers, Potentiometer and Rheostat

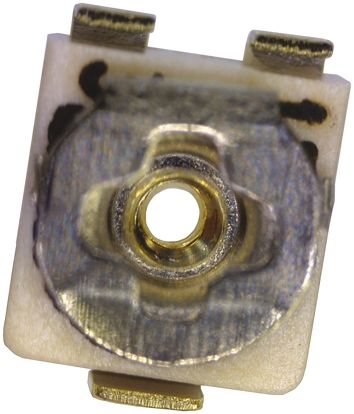

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Type | Trimmer |
| Resistance Value | 1 MOhm |
| Tolerance | 30 % |
| Number of Turns | 1(Elec)|1(Mech) Turns |
| Power Rating | 1/20 W |
| Mounting | Surface Mount |
| Technology | Carbon Film |
| Operating Temperature | -25 to 85 °C |
| Standard Package | Tape & Reel |
| Resistance Value | 1M |
| EU RoHS | Compliant |
| Product Depth | 2.7 |
| Temperature Coefficient | ±500 |
| Termination Style | J-Hook |
| Product Length | 2.1 |
| Product Height | 2 |
| Packaging | Tape and Reel |
| Power Rating | 0.05 (1/20) |
| Number of Turns | 1(Elec)|1(Mech) |
| Unit Pack | 3000 |
| MOQ | 3000 |
| Subcategory | Resistor Trimmers, Potentiometer and Rheostat |
| Lead Time | 42 Days |
| Resistance (Ohms) | 1M |
| Mounting Type | Surface Mount |
| Temperature Coefficient | ±500ppm/°C |
| Size / Dimension | Square - 0.087" L x 0.083" W x 0.031" H (2.20mm x 2.10mm x 0.80mm) |
| Resistive Material | Carbon |
| Power (Watts) | 0.05W, 1/20W |
| Adjustment Type | Top Adjustment |
| rohs | Lead free / RoHS Compliant |
| Other Names | 490-7001-1 |
| Factory Pack Quantity | 3000 |
| Product | Single-Turn Trimmer Potentiometers |
| Product Category | Trimmer Resistors - SMD |
| Dimensions | 2.1 mm W x 2.7 mm L x 0.8 mm H |
| Taper | Linear |
| Element Type | Carbon |
| Operating Temperature Range | - 25 C to + 85 C |
| Resistance | 1 MOhms |
| Product Type | Single Turn |
| Adjustment | Top Crossed |
| RoHS | RoHS Compliant |
| Board Level Components | Y |
| 容差 | ±30% |
| 最高工作溫度 | +85°C |
| 安裝類型 | 表面貼裝 |
| 額定功率 | 0.05W |
| 高度 | 0.8mm |
| 接端樣式 | 焊墊 |
| 溫度系數 | ±500ppm/°C |
| 尺寸 | 2.1 x 2.2 x 0.8mm |
| 最低工作溫度 | -25°C |
| 轉數 | 1 |
| 深度 | 2.2mm |
| 長度 | 2.1mm |
| 最大電阻 | 1MΩ |
| 軸直徑 | 2.4 mm |
