Q8025NH6RP

Triacs 800V 25A

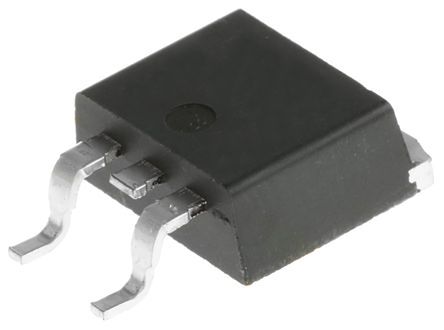

Thumbnail Q8025NH6RP Thumbnail Q8025NH6RP Thumbnail Q8025NH6RP Thumbnail Q8025NH6RP Thumbnail Q8025NH6RP Thumbnail Q8025NH6RP
廠商型號: Q8025NH6RP
芯天下內部編號: 206-Q8025NH6RP
生產廠商:
Littelfuse Littelfuse
描述: Triacs 800V 25A
產品類別: Circuit Protection|Thyristors|Triacs
客戶編號:
規格書: 查看PDF
瀏覽次數: 6

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。

庫存與訂購

庫存: 0
庫存獲取中，請稍候....

產品參數

參數類型 參數值
Repetitive Peak Reverse Voltage 800
Mounting Surface Mount
Surge Current Rating 250
Maximum Gate Trigger Voltage 1.3
Package Width 9.4(Max)
PCB 2
Type TRIAC
Peak On-State Voltage 1.8@35.4A
EU RoHS Compliant
Maximum Holding Current 100
Repetitive Peak Forward Blocking Voltage 800
Minimum Operating Temperature -40
Supplier Package D2PAK
Standard Package Name D2PAK
Maximum Operating Temperature 125
Package Length 10.67(Max)
Operating Junction Temperature -40 to 125
Pin Count 3
Maximum Gate Trigger Current 80
Package Height 4.78(Max)
Repetitive Peak Off-State Current 0.1
Packaging Tape and Reel
Tab Tab
Lead Shape Gull-wing
Unit Pack 500
MOQ 500
rohs Lead free / RoHS Compliant
Factory Pack Quantity 500
Product Category Triacs
Rated Repetitive Off-State Voltage VDRM 800 V
Gate Trigger Current 80 mA
Off-State Leakage Current @ VDRM IDRM 100 uA
Holding Current (Ih Max) 100 mA
Series Qxx25xx
On-State RMS Current - It RMS 25 A
Mounting Style SMD/SMT
Non Repetitive On-State Current 208 A, 250 A
Minimum Operating Temperature - 40 C
Package / Case TO-263-3
On-State Voltage 1.8 V
Maximum Operating Temperature + 125 C
RoHS RoHS Compliant
Peak Repetitive Off-State Voltage, Vdrm :800V
Gate Trigger Current Max (QI), Igt :80mA
On State RMS Current IT(rms) :25A
Peak Non Rep Surge Current Itsm 50Hz :208A
Holding Current Max Ih :100mA
Gate Trigger Voltage Max Vgt :1.3V
Peak Gate Power :500mW
Operating Temperature Min :-40°C
Operating Temperature Max :125°C
Thyristor Case :TO-263
No. of Pins :3
MSL :-
SVHC :No SVHC (20-Jun-2013)
Gate Trigger Current Max, Igt :80mA
Operating Temperature Range :-40°C to +125°C
Weight (kg) 0.00143
Tariff No. 85413000
