R463I22204001M
Film Capacitors 300volts 0.022uF 20%
廠商型號:
R463I22204001M
芯天下內部編號:
196-R463I22204001M
生產廠商:
Kemet
描述:
Film Capacitors 300volts 0.022uF 20%
產品類別:
Passive Components|Capacitors|Film Capacitors

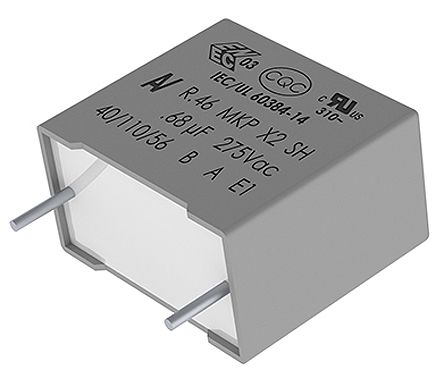

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Category | Film Capacitors |
| RoHS | RoHS Compliant |
| Product Type | AC Pulse, Suppression |
| Dielectric | Polypropylene (PP) |
| Capacitance | 0.022 uF |
| Tolerance | 20 % |
| Voltage Rating | 300 VAC |
| Series | MKP R.46 |
| Operating Temperature Range | - 40 C to + 110 C |
| Termination Style | Radial |
| Lead Spacing | 15 mm |
| Capacitance - nF | 22 nF |
| Capacitance - pF | 22000 pF |
| Case Height | 18 mm |
| Case Length | 11 mm |
| Case Width | 5 mm |
| Class | X2 |
| Lead Diameter | 0.6 mm |
| Packaging | Bulk |
| Product | Pulse Film Capacitors |
| Factory Pack Quantity | 1000 |
| Type | X2 Class Metallized Polypropylene Film Capacitor, Self Healing Properties |
| Voltage Rating AC | 300 V |
| Voltage Rating DC | 630 V |
| Part # Aliases | 463I22204001M |
| 耗散因數 | 0.1 % @ 1KHz |
| 應用 | 干擾抑制 |
| 容差 | ±20% |
| 安裝類型 | 通孔 |
| 端子類型 | 徑向 |
| 電容值 | 22 nF |
| 電介質材料系列 | 聚丙烯 (PP) |
| 封裝/外殼 | 40 |
| 容差 負 | -20% |
| 電介質 | 聚丙烯 |
| 長度 | 18mm |
| 引線直徑 | 0.6mm |
| 引線節距 | 15mm |
| 系列 | R46 |
| 高度 | 11mm |
| 深度 | 5mm |
| Board Level Components | Y |
| 最高工作溫度 | +110°C |
| 最低工作溫度 | -40°C |
| 電容器系列 | 薄膜 |
| 尺寸 | 18 x 5 x 11mm |
| 電壓 | 310 V 交流，630 V 直流 |
| 引線長度 | 30mm |
| 容差 正 | +20% |
| 抑制類別 | X2 |
| 絕緣電阻 | 1 x 10?MΩ |
