R50RG2-4-0045
Standard LEDs - Through Hole Red/Grn 635/525nm 4000/5000 mcd
廠商型號:
R50RG2-4-0045
芯天下內部編號:
15-R50RG2-4-0045
生產廠商:
Bivar
描述:
Standard LEDs - Through Hole Red/Grn 635/525nm 4000/5000 mcd
產品類別:
Optoelectronics|LED Indication|Standard LEDs - Through Hole

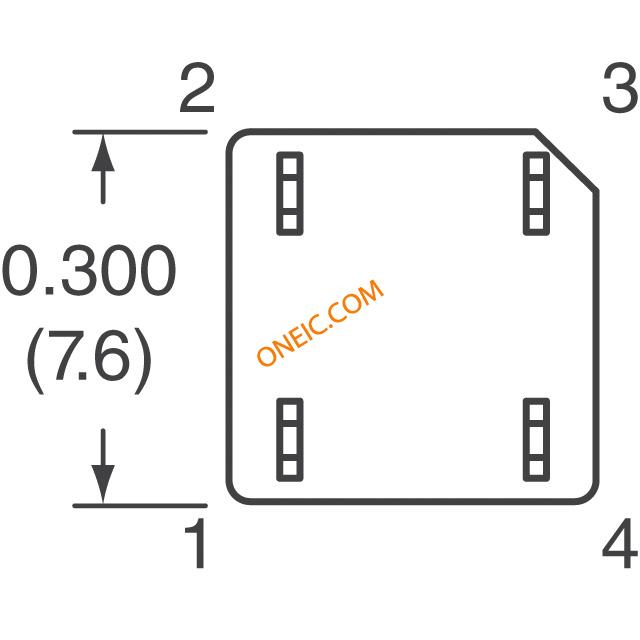

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Category | Standard LEDs - Through Hole |
| RoHS | RoHS Compliant |
| Illumination Color | Red, Green |
| Wavelength/Color Temperature | 635 nm, 525 nm |
| Viewing Angle | 45 deg |
| LED Size | 7.62 mm x 7.62 mm |
| Packaging | Bulk |
| Lens Shape | Dome |
| Maximum Operating Temperature | + 80 C |
| Minimum Operating Temperature | - 25 C |
| Mounting Style | Through Hole |
| Voltage - Forward (Vf) Typ | 3.8V Green, 2.6V Red |
| Mounting Type | Through Hole |
| Lens Style/Size | Square with Domed Top, 7.60mm |
| Color | Green, Red |
| Wavelength - Dominant | 520nm, 627.5nm |
| Size / Dimension | 7.60mm L x 7.60mm W |
| Millicandela Rating | 5000mcd Green, 4000mcd Red |
| Standard Package | 60 |
| Current - Test | 50mA |
| Height | 5.90mm |
| Lens Type | Clear |
| Package/Case | 4-DIP (0.200", 5.08mm) |
| rohs | Lead free / RoHS Compliant |
| Bulb Size | :4.6mm |
| LED Color | :Red / Green |
| Luminous Intensity / Color | :R 4cd / G 5cd |
| Forward Voltage / Color | :R 2.6V / G 3.8V |
| Forward Current / Color | :50mA |
| Weight (kg) | 0 |
| Tariff No. | 85414010 |
