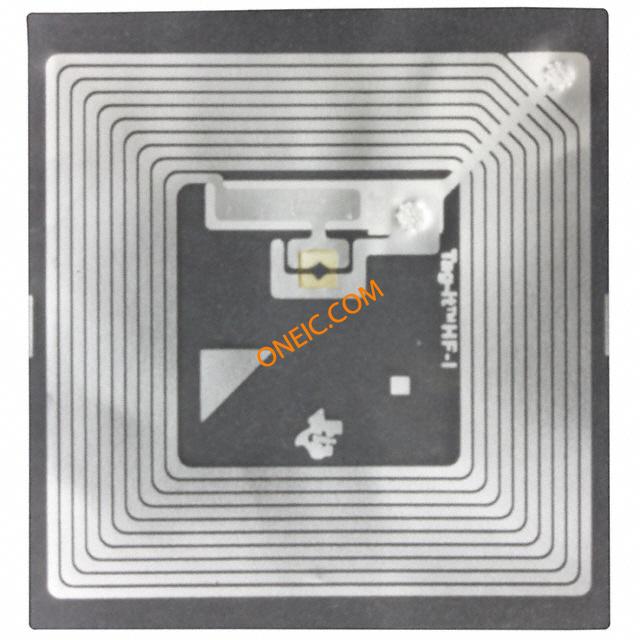

RI-I11-114B-S1
RFID TRANSP SQ IN-LAY 13.56MHZ
廠商型號:
RI-I11-114B-S1
芯天下內部編號:
136-RI-I11-114B-S1
生產廠商:
texas instruments
描述:
RFID TRANSP SQ IN-LAY 13.56MHZ
產品類別:
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Category | RFID Transponders |
| RoHS | RoHS Compliant |
| Operating Temperature Range | - 25 C to + 70 C |
| Frequency | 13.56 MHz |
| Factory Pack Quantity | 5000 |
| EU RoHS | Compliant |
| Features | ISO15693, ISO18000-3, 256-bits |
| RF Type | Read / Write |
| Packaging | Tape & Reel (TR) |
| Standard Package | 5,000 |
| Other Names | 481-1093-2 |
| Package/Case | 45mm x 45mm |
| rohs | Lead free / RoHS Compliant |
| Series | RI-I11-114B-S1 |
| Status | ACTIVE |
| Temp (oC) | -25 to 70 |
| Package | Pins | RFIDN?(TFB) | 0 |
| Data Rate Downlink (kbits/s) | |
| Minimum Antenna Input Voltage @ ftx (Volts) | |
| Anticollision | Yes |
| Storage Temperature (°C) | -40 to 85 |
| Programming Cycles | 100000 |
| Dimensions (mm) | 45 x 45 |
| User programmable Memory (bits) | 256 |
| Package Group | RFIDN |
| Standard | ISO 15693 ISO 18000-3 |
| Modulation Technique | |
| Case Material | |
| Die Processing | |
| Operating Temperature Range (°C) | -25 to 70 |
| Security Features | Password Command Kill Command Factory Memory Lock User Memory Lock |
| Package | Inlay |
| Protection Class | |
| Recommended Operating Enviroment | PVC laminated |
| Transmission Principle | ASK FSK |
| Datasheet | SCBS822C |
| Write Time (ms) | |
| Read Time (ms) | |
| Chip Thickness (micrometers) | |
| Output Impedance | |
| Factory Programmed Read Only Number (bits) | 64 |
| 頻率 | 13.56MHz |
| 頻率類型 | Read / Write |
| 系列 | Tag-it? HF-I Pro Square Inlays |
| 封裝/外殼 | 45mm x 45mm |
| 特性 | ISO15693, ISO18000-3, 256-bits |
