RK11K1120A2B
Horizontal carbon pot,10K lin 11mm 50mW
廠商型號:
RK11K1120A2B
芯天下內部編號:
507-RK11K1120A2B
生產廠商:
Alps
描述:
Horizontal carbon pot,10K lin 11mm 50mW
產品類別:
Passive Components|Variable Resistors|Potentiometers
客戶編號:

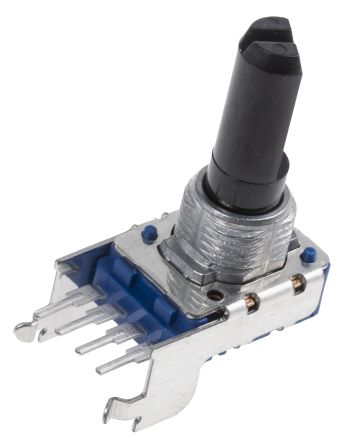

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Depth | 11mm |
| Dimensions | 7.5 x 11 x 15.7mm |
| Height | 15.7mm |
| Length | 7.5mm |
| Maximum Operating Temperature | +60°C |
| Maximum Resistance | 10kΩ |
| Minimum Operating Temperature | -10°C |
| Mounting Type | Panel Mount, Through Hole |
| Number of Turns | 1 |
| Potentiometer Type | Linear |
| Power Rating | 0.05W |
| Shaft Diameter | 6 mm |
| Termination Style | Pin |
| Tolerance | ±20% |
| 系列 | RK11K |
| 容差 | ±20% |
| 最高工作溫度 | +60°C |
| 安裝類型 | 面板安裝，通孔 |
| 額定功率 | 0.05W |
| 高度 | 15.7mm |
| 電位器類型 | 線性 |
| 接端樣式 | 針 |
| 長度 | 7.5mm |
| 尺寸 | 7.5 x 11 x 15.7mm |
| 最低工作溫度 | -10°C |
| 轉數 | 1 |
| 深度 | 11mm |
| Board Level Components | Y |
| 軸直徑 | 6 mm。 |
| 最大電阻 | 10kΩ |
