RP3502MAYEL
SWITCH PUSH SPST-NO 3A 120V
廠商型號:
RP3502MAYEL
芯天下內部編號:
129-RP3502MAYEL
生產廠商:
E-Switch
描述:
SWITCH PUSH SPST-NO 3A 120V
產品類別:
Switches|Pushbutton Switches|RP3502
客戶編號:
規格書:
查看PDF

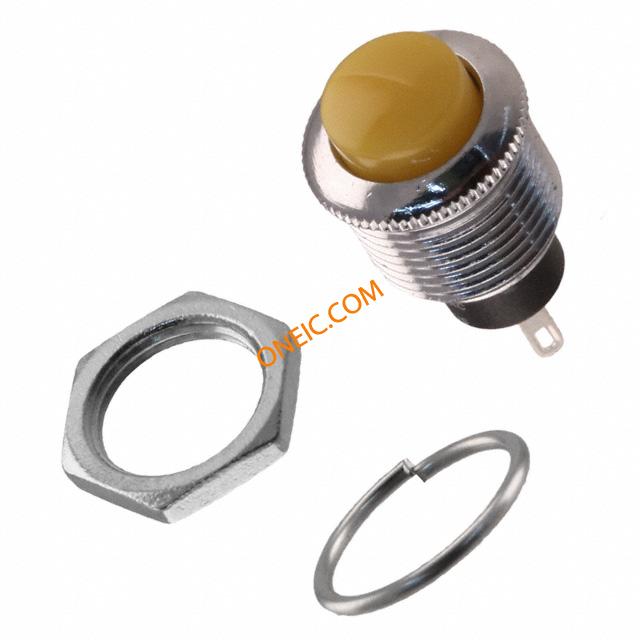

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Packaging | Bulk |
| Switch Function | Off-Mom |
| Current Rating | 3A (AC) |
| Panel Cutout Dimensions | Circular - 12.70mm Dia |
| Mounting Type | Panel Mount, Front |
| Voltage Rating - AC | 120V |
| Type | Standard |
| Electrical Life | 6,000 Cycles |
| Termination Style | Solder Lug |
| Color - Actuator/Cap | Yellow |
| Operating Temperature | -20°C ~ 65°C |
| Actuator Type | Round, Button |
| Standard Package | 1 |
| Mechanical Life | 6,000 Cycles |
| Circuit | SPST-NO |
| Voltage Rating AC | 250 V |
| Product Category | Pushbutton Switches |
| Terminal Seal | Unsealed |
| Series | RP3502 |
| Contact Form | SPST |
| Mounting Style | Through Hole |
| RoHS | RoHS Compliant |
| SubCategory | Pushbutton Switch |
| MainCategory | Switches |
