RT012AS1001KB
レオスタット RT 12 L AS 1K 10% BO10 e
廠商型號:
RT012AS1001KB
芯天下內部編號:
5-RT012AS1001KB
生產廠商:
Vishay / Sfernice
描述:
レオスタット RT 12 L AS 1K 10% BO10 e
產品類別:
Potentiometers, Variable Resistors|Rheostats|RT12
客戶編號:
規格書:
查看PDF

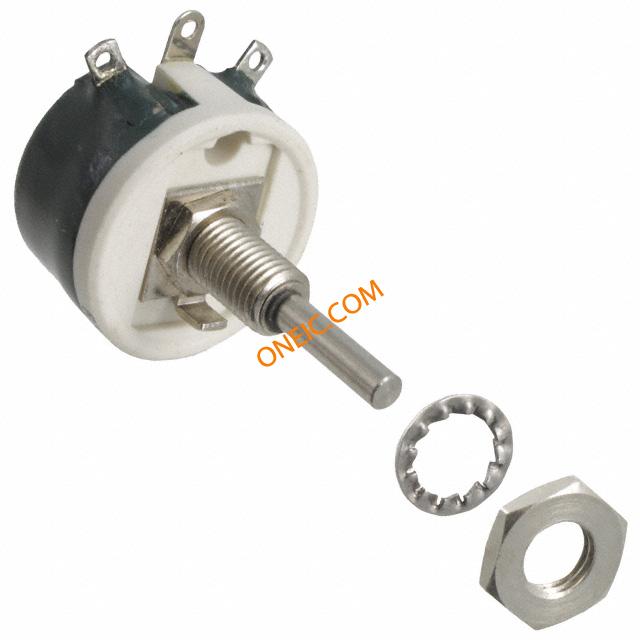

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Unit Pack | 10 |
| MOQ | 10 |
| Resistance (Ohms) | 1k |
| Actuator Length | 22.00mm |
| Features | Enclosed Frame |
| Termination Style | Solder Lug |
| Power (Watts) | 12W |
| Actuator Diameter | 3.00mm |
| Standard Package | 10 |
| Rotation | 290° |
| Other Names | RTAS-1.0KC |
| rohs | Lead free / RoHS Compliant |
| Depth | 22.5mm |
| Dimensions | 40 x 22.5 x 26.75mm |
| Height | 26.75mm |
| Length | 40mm |
| Maximum Operating Temperature | +320°C |
| Maximum Resistance | 1000Ω |
| Minimum Operating Temperature | -55°C |
| Mounting Type | Panel Mount |
| Number of Turns | 1 |
| Power Rating | 12W |
| Shaft Diameter | 3 mm |
| Tolerance | ±10% |
| Track Resistance | :1kohm |
| Track Taper | :Linear |
| Resistance Tolerance | :± 10% |
| Resistor Element Material | :Wirewound |
| Adjustment Type | :Shaft |
| Potentiometer Mounting | :Panel |
| Body Diameter | :22mm |
| External Length / Height | :18mm |
| Full Power Rating Temperature | :25°C |
| Mechanical Angular Rotation Tolerance + | :5° |
| Mechanical Angular Rotation Tolerance - | :5° |
| No. of Gangs | :1 |
| No. of Turns | :1 |
| Operating Temperature Max | :320°C |
| Operating Temperature Min | :-55°C |
| Operating Temperature Range | :-55°C to +320°C |
| Proof Voltage | :1000V |
| Resistance | :1kohm |
| Rotation Mechanical Angle | :300° |
| Series | :RT |
| Shaft Length - Metric | :22mm |
| Tolerance + | :10% |
| Tolerance - | :10% |
| Voltage Rating | :300V |
| Weight (kg) | 0.016 |
| Tariff No. | 85333100 |
