RUEF135
PTC Resettable Fuse 100A 30V Bulk
廠商型號:
RUEF135
芯天下內部編號:
35-RUEF135
生產廠商:
te connectivity / raychem circuit protection
描述:
PTC Resettable Fuse 100A 30V Bulk
產品類別:
Circuit Protection|PTC Resettable Fuse

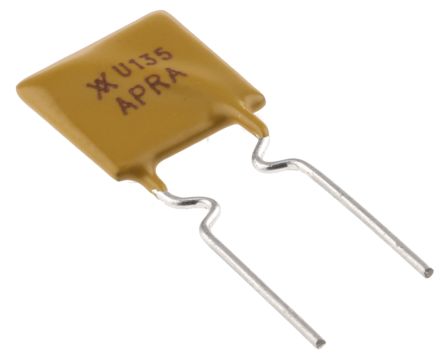

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Trip Current | 2.7 A |
| Maximum Voltage Rating | 30 V |
| Hold Current | 1.35 A |
| Maximum Current Rating | 100 A |
| Agency Approvals | CSA/TUV/UL |
| Maximum Trip Time | 7.3@6.75A s |
| Typical Power Dissipation | 0.8 W |
| Minimum Initial Resistance | 0.04 Ohm |
| Maximum Initial Resistance | 0.08 Ohm |
| Standard Package | Bag |
| Product Category | Resettable Fuses |
| RoHS | RoHS Compliant |
| Current Rating | 100 A |
| Resistance | 0.13 Ohms |
| Maximum Voltage DC | 30 V |
| Mounting Style | Through Hole |
| Termination Style | Radial |
| Lead Spacing | 5.8 mm |
| Series | RUEF |
| Operating Temperature Range | - 40 C to + 85 C |
| Current Rating (Max) | 100 A |
| Dimensions | 13.5 mm L x 8.9 mm W x 3 mm H |
| Maximum Voltage | 30 VDC |
| Packaging | Bulk |
| Factory Pack Quantity | 500 |
| Type | PolySwitch Resettable Fuses |
| Part # Aliases | C13877-000 |
| Selling Alternatives | RUE135 |
| Industry Aliases | C13877-000, RUEF135 |
| Subcategory | PTC Resettable Fuse |
| Lead Time | 48 Days |
| Current - Max | 100A |
| Voltage - Max | 30V |
| Time to Trip | 7.3s |
| Current - Hold (Ih) (Max) | 1.35A |
| R Min/Max | 0.040 ~ 0.080 Ohm |
| Other Names | C13877-000 |
| Current - Trip (It) | 2.7A |
| Package/Case | Radial |
| rohs | Lead free / RoHS Compliant |
| Body Height | 13.5mm |
| Body Length | 8.9mm |
| Body Width | 3mm |
| Lead Orientation | Radial |
| Maximum Current | 100 A |
| Maximum Resistance | 0.13Ω |
| Minimum Resistance | 0.04Ω |
| Power Dissipation | 0.8W |
| Voltage Rating | 30 V dc |
| Wire Diameter | 0.51mm |
| Wire Length | 7.6mm |
| Wire Pitch | 4.3 → 5.8mm |
| Current Rating - Max | 100 A |
| Operating Temperature Max Deg. C | 85C |
| Operating Temperature Min Deg. C | -40C |
| Voltage Rating Max | 30V |
| Initial Resistance (Min) | 0.04 Ohm |
| Initial Resistance (Max) | 0.08 Ohm |
| Post Trip Resistance (Max) | 0.13 Ohm |
| Power Dissipation (Typ) | 0.8 W |
| Trip Time (Max) | 7.3@6.75A s |
| Holding Current | :1.35A |
| Tripping Current | :2.7A |
| Carrying Current Max | :100A |
| Initial Resistance Max | :0.13ohm |
| Operating Voltage | :30V |
| PTC Fuse Case | :Radial Leaded |
| SVHC | :No SVHC (20-Jun-2013) |
| Approval Bodies | :CSA, TUV |
| Approval Category | :UL Recognised |
| External Depth | :3mm |
| External Length / Height | :13.5mm |
| External Width | :8.9mm |
| Flammability Rating | :UL94V-0 |
| Height | :13.5mm |
| Holding Current Max Ih | :1.35A |
| Initial Resistance Min | :0.04ohm |
| Lead Diameter | :0.51mm |
| Lead Length | :7.6mm |
| Operating Temperature Max | :85°C |
| Operating Temperature Min | :-40°C |
| Reset Time | :20s |
| Surface Tripped Temperature Max | :125°C |
| Thermistor Type | :PTC Resettable Fuse |
| Weight (kg) | 0.0028 |
| Tariff No. | 85361010 |
| Brand/Series | RUEFSeries |
| Current,Rating | 1.35A |
| Material,Body | EpoxyPolymer |
| MountingType | ThroughHole |
| PrimaryType | Resettable |
| Resistance,DC | 0.13Ohms |
| Termination | Radial |
| Voltage,Rating | 30VDC |
| Terminal pitch | 5mm |
| Power | 0.8W |
| Max resistance | 130mΩ |
| Rated current | 1.35A |
| Multiplicity | 1 |
| Fuse size | 8,9x13,5mm |
| Gross weight | 0.26 g |
| Switched current | 2.7A |
| Operating temperature | max. 85°C |
| Fuse type | PTC polymer |
| Voltage max | 30V |
| Min resistance | 40mΩ |
| Collective package [pcs] | 250 |
| spg | 250 |
