RUEF250-2
PTC Resettable Fuse 100A 30V T/R
廠商型號:
RUEF250-2
芯天下內部編號:
35-RUEF250-2
生產廠商:
te connectivity / raychem circuit protection
描述:
PTC Resettable Fuse 100A 30V T/R
產品類別:
Circuit Protection|PTC Resettable Fuse
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Trip Current | 5 A |
| Maximum Voltage Rating | 30 V |
| Hold Current | 2.5 A |
| Maximum Current Rating | 100 A |
| Agency Approvals | CSA/TUV/UL |
| Maximum Trip Time | 10.3@12.5A s |
| Typical Power Dissipation | 1.2 W |
| Minimum Initial Resistance | 0.02 Ohm |
| Maximum Initial Resistance | 0.04 Ohm |
| Standard Package | Tape & Reel |
| Product Category | Resettable Fuses |
| RoHS | RoHS Compliant |
| Current Rating | 100 A |
| Resistance | 0.07 Ohms |
| Maximum Voltage DC | 30 V |
| Mounting Style | Through Hole |
| Termination Style | Radial |
| Lead Spacing | 5.8 mm |
| Series | RUEF |
| Operating Temperature Range | - 40 C to + 85 C |
| Current Rating (Max) | 100 A |

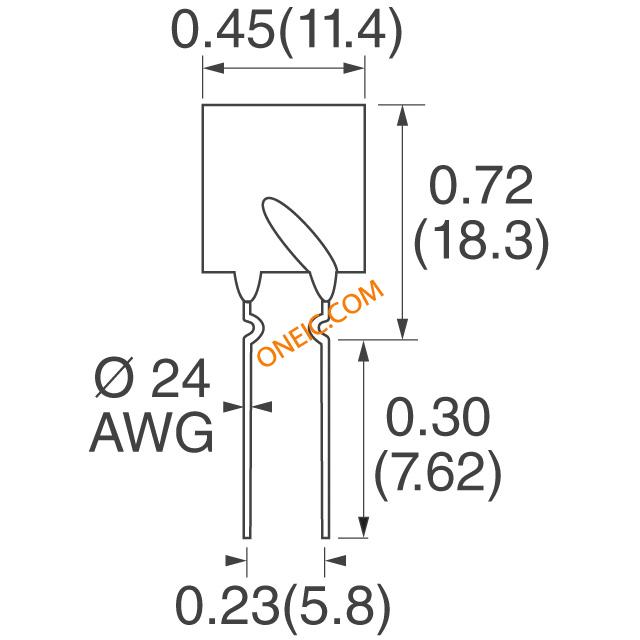

| Dimensions | 18.3 mm L x 11.4 mm W x 3 mm H |
| Maximum Voltage | 30 VDC |
| Packaging | Reel |
| Factory Pack Quantity | 3000 |
| Type | PolySwitch Resettable Fuses |
| Part # Aliases | D83039-000 |
| Current - Max | 100A |
| Voltage - Max | 30V |
| Time to Trip | 10.3s |
| R Min/Max | 0.020 ~ 0.040 Ohm |
| Current - Hold (Ih) (Max) | 2.5A |
| Current - Trip (It) | 5A |
| Package/Case | Radial |
| rohs | Lead free / RoHS Compliant |
| Other Names | RUEF250CT |
| Current Rating - Max | 100 A |
| Operating Temperature Max Deg. C | 85C |
| Operating Temperature Min Deg. C | -40C |
| Voltage Rating Max | 30V |
| Initial Resistance (Min) | 0.02 Ohm |
| Initial Resistance (Max) | 0.04 Ohm |
| Post Trip Resistance (Max) | 0.07 Ohm |
| Power Dissipation (Typ) | 1.2 W |
| Trip Time (Max) | 10.3@12.5A s |
| Power Dissipation | 1.2 W |
| Holding Current | :2.5A |
| Tripping Current | :5A |
| Initial Resistance Max | :0.04ohm |
| Operating Voltage | :30V |
| PTC Fuse Case | :Radial Leaded |
| Weight (kg) | 0 |
| Tariff No. | 85361010 |
