S761K
Conn Power F 2 POS ST Cable Mount 2 Terminal 1 Port
廠商型號:
S761K
芯天下內部編號:
76-S761K
生產廠商:
Switchcraft
描述:
Conn Power F 2 POS ST Cable Mount 2 Terminal 1 Port
產品類別:
Connectors|Power Connectors|DC Power Plugs

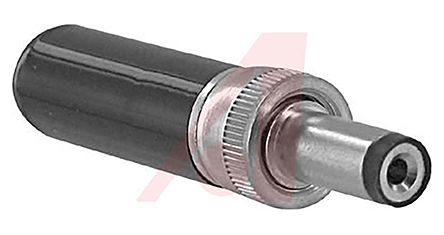

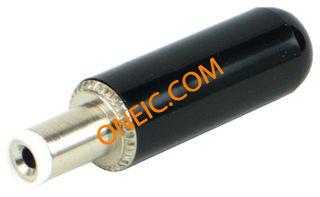

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Length | 45.72 |
| EU RoHS | Compliant |
| Product Diameter | 10.5 |
| Mounting | Cable Mount |
| Body Orientation | Straight |
| Maximum Current Rating | 5 |
| Housing Material | Plastic |
| Number of Ports | 1 |
| Contact Plating | Tin |
| Gender | F |
| Number of Contacts | 2 |
| Type | Power |
| Number of Terminals | 2 |
| Contact Material | Copper Alloy |
| Subcategory | Connector Power |
| Lead Time | 24 Days |
| Shielding | Unshielded |
| Plug/Mating Plug Diameter | 2.1mm ID, 5.5mm OD |
| Number of Positions/Contacts | 2 Conductors, 2 Contacts |
| Color | Black |
| Standard Package | 100 |
| Features | Mounting Hardware, Thread Lock |
| Connector Type | Plug |
| Internal Switch(s) | Does Not Contain Switch |
| Housing Color | Black |
| Termination | Solder Eyelet(s) |
| Mounting Type | Free Hanging (In-Line) |
| Current Rating | 5A |
| Contact Material - Plating | Nickel |
| rohs | Lead free / RoHS Compliant |
| Factory Pack Quantity | 100 |
| Product | Plugs |
| Product Category | DC Power Connectors |
| Mounting Angle | Straight |
| Inside Contact Diameter | 2.03 mm |
| Mounting Style | Cable |
| Outside Contact Diameter | 5.5 mm |
| Series | Standard DC Power Plugs |
| RoHS | RoHS Compliant |
| Current Rating (Max) | 5 A |
| Product Length (mm) | 45.72 mm |
| Product Diameter (mm) | 10.5 mm |
| Connector Mounting | :Cable |
| Contact Termination | :Solder |
| SVHC | :No SVHC (20-Jun-2013) |
| No. of Outlets | :1 |
| Termination Method | :Solder |
| Weight (kg) | 0.001 |
| Tariff No. | 85369010 |
| Weight (g): | 8.00000 |
| Angle | Straight |
| ContactPlating | Nickel |
| Current,Rating | 5A |
| InsulationType | Insulated |
| Material,Contact | CopperAlloy |
| NumberofContacts | 2 |
| PrimaryType | Power |
| Size | Mini |
