SB4011NOHC
Switch Push Button OFF (ON) SPST Round Plunger 3A 250VAC 30VDC Momentary Contact Solder Lug Panel Mount
廠商型號:
SB4011NOHC
芯天下內部編號:
240-SB4011NOHC
生產廠商:
NKK Switches
描述:
Switch Push Button OFF (ON) SPST Round Plunger 3A 250VAC 30VDC Momentary Contact Solder Lug Panel Mount
產品類別:
Switches|Pushbutton Switches|SB40
客戶編號:
規格書:
查看PDF

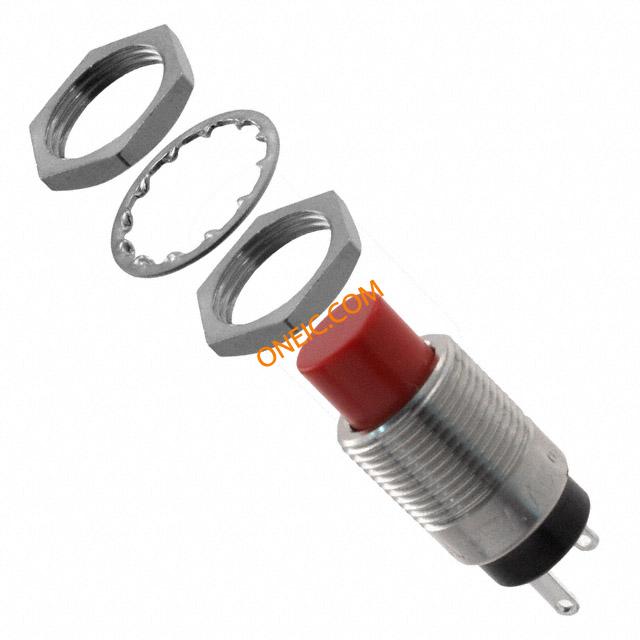

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Function | Momentary Contact |
| Electrical Life | 10000 |
| Product Length | 12 |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 70 |
| Contact Plating | Silver |
| Product Depth | 12 |
| Mounting | Panel Mount |
| Body Orientation | Straight |
| Actuator Style | Round Plunger |
| Switch Configuration | OFF (ON) |
| Product Height | 24.3 |
| Maximum DC Voltage Rating | 30 |
| Maximum AC Voltage Rating | 250 |
| Pole Throw Configuration | SPST |
| Terminal Type | Solder Lug |
| Minimum Operating Temperature | -10 |
| Maximum Current Rating | 3@125VAC |
| Mechanical Life | 30000 |
| Actuator Material | Phenolic Resin |
| Packaging | Bulk |
| Switch Function | Off-Mom |
| Current Rating | 3A (AC), 2A (DC) |
| Panel Cutout Dimensions | Circular - 12.50mm Dia |
| Mounting Type | Panel Mount, Rear |
| Voltage Rating - AC | 125V |
| Type | Standard |
| Electrical Life | 10,000 Cycles |
| Termination Style | Solder Lug |
| Color - Actuator/Cap | Red |
| Operating Temperature | -10°C ~ 70°C |
| Actuator Type | Plunger for Cap |
| Standard Package | 50 |
| Voltage Rating - DC | 30V |
| Mechanical Life | 30,000 Cycles |
| Circuit | SPST-NO |
| Features | Epoxy Sealed Terminals |
| rohs | Lead free / RoHS Compliant |
| Operating Temp Range | -10C to 70C |
| Current Rating (Max) | 3 A |
| Mounting Style | Panel |
| Operating Temperature Max Deg. C | 70C |
| Operating Temperature Min Deg. C | -10C |
| Illumination Type | Not Required |
| Product Length (mm) | 12 mm |
| Product Depth (mm) | 12 mm |
| AC Voltage Rating (Max) | 250V VAC |
| DC Voltage Rating (Max) | 30V VDC |
| Contact Configuration | :SPST-NO |
| Switch Operation | :On-(Off) |
| Contact Voltage AC Nom | :125V |
| Contact Current Max | :3mA |
| Switch Terminals | :Solder |
| Actuator / Cap Color | :- |
| Weight (kg) | 0 |
| Tariff No. | 85365080 |
