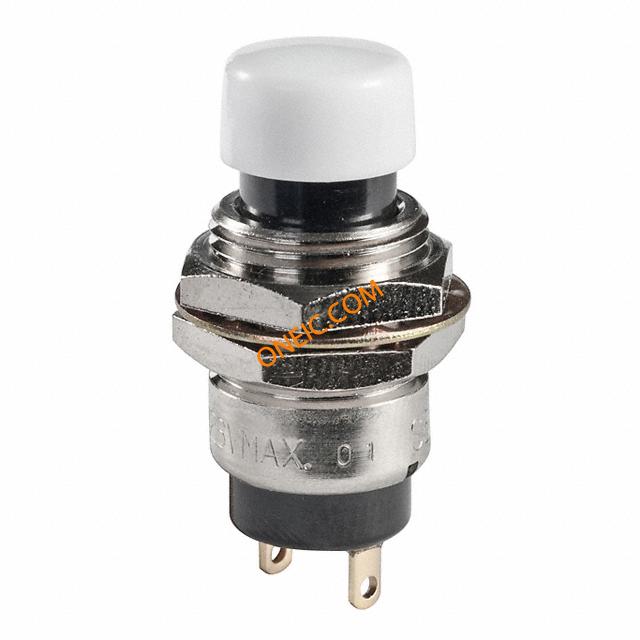

SB4011NOHG-2B
Pushbutton Switches SPST OFF(ON) PB WHT
廠商型號:
SB4011NOHG-2B
芯天下內部編號:
240-SB4011NOHG-2B
生產廠商:
NKK Switches
描述:
Pushbutton Switches SPST OFF(ON) PB WHT
產品類別:
Switches|Pushbutton Switches|SB40
客戶編號:
規格書:
查看PDF
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Packaging | Bulk |
| Switch Function | Off-Mom |
| Current Rating | 0.4VA (AC/DC) |
| Panel Cutout Dimensions | Circular - 12.50mm Dia |
| Mounting Type | Panel Mount, Rear |
| Voltage Rating - AC | 28V |
| Type | Standard |
| Electrical Life | 10,000 Cycles |
| Termination Style | Solder Lug |
| Color - Actuator/Cap | White |
| Operating Temperature | -10°C ~ 70°C |
| Actuator Type | Round, Button |
| Standard Package | 1 |
| Voltage Rating - DC | 28V |
| Mechanical Life | 30,000 Cycles |
| Circuit | SPST-NO |
| Features | Epoxy Sealed Terminals |
| Mounting Style | Panel |
| Voltage Rating AC | 28 V |
| Product Category | Pushbutton Switches |
| Terminal Seal | Epoxy |
| Series | SB4011 |
| Contact Form | SPST |
| Cap Color | White |
| Voltage Rating DC | 28 V |
| Housing Material | Phenolic Resin |
| Flammability Rating | UL 94 V-0 |
| Contact Plating | Gold |
| Actuator | Plunger, with Cap |
| Power Rating | 0.4 VA |
| RoHS | RoHS Compliant By Exemption |
| Contact Configuration | :SPST-NO |
| Switch Operation | :On-(Off) |
| Contact Voltage AC Nom | :125V |
| Contact Current Max | :3mA |
| Actuator Style | :Round |
| Switch Terminals | :Solder |
| Actuator / Cap Color | :White |
| Weight (kg) | 0 |
| Tariff No. | 85365080 |
