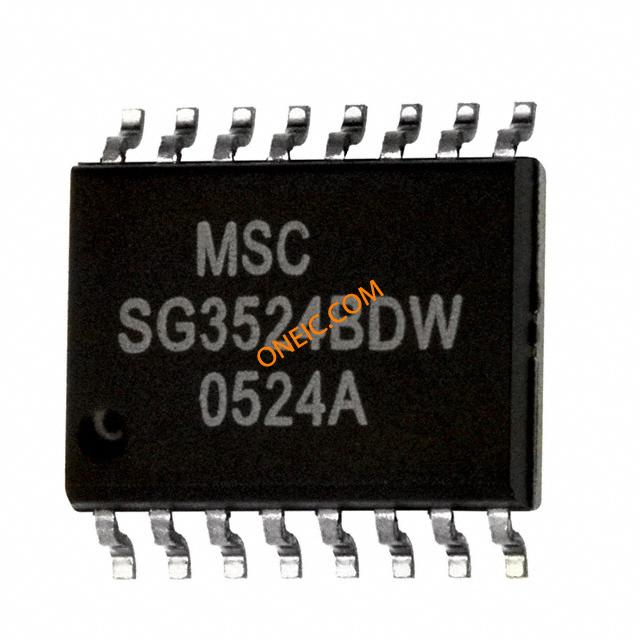

SG3524BDW
Voltage Mode PWM Controller 19V 100mA 16-Pin SOWB
廠商型號:
SG3524BDW
芯天下內部編號:
253-SG3524BDW
生產廠商:
microsemi
描述:
Voltage Mode PWM Controller 19V 100mA 16-Pin SOWB
產品類別:
Power Management|PWM Controllers|Voltage Mode PWM Controller
所示圖像僅為示意圖。請從產品數據表中獲得準確的規(guī)格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Package | 16SOWB |
| Number of PWM Outputs | 2 |
| Output Voltage | 19 V |
| Output Current | 100(Max) mA |
| Maximum Duty Cycle | 49(Typ) % |
| Switching Frequency | 600(Typ) kHz |
| On/Off Pin | Yes |
| Operating Temperature | 0 to 70 °C |
| Mounting | Surface Mount |
| Standard Package | Bulk |
| Supplier Package | SOWB |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 70 |
| Minimum Operating Temperature | 0 |
| Output Current | 100(Max) |
| Switching Frequency | 600(Typ) |
| Control Method | Voltage Mode PWM Controller |
| Rise Time | 200 |
| Synchronous Pin | No |
| Output Voltage | 19 |
| Maximum Operating Supply Voltage | 40 |
| PCB | 16 |
| Screening Level | Commercial |
| Adjustable Output | No |
| Maximum Duty Cycle | 49(Typ) |
| Minimum Operating Supply Voltage | 7 |
| Pin Count | 16 |
| Fall Time | 100 |
| Number of Outputs | 2 |
| Duty Cycle | 49% |
| Flyback | Yes |
| Buck | Yes |
| Cuk | No |
| Boost | No |
| Isolated | No |
| PWM Type | Current/Voltage Mode |
| Frequency - Max | 600kHz |
| Voltage - Supply | 7 V ~ 40 V |
| Inverting | No |
| Doubler | No |
| Divider | No |
| Package/Case | 16-SOIC (0.154", 3.90mm Width) |
| rohs | Lead free / RoHS Compliant |
| 倍增器 | No |
| 分頻器 | No |
| PWM 類型 | Current/Voltage Mode |
| 操作溫度 | 0°C ~ 70°C |
| 電壓 - 電源 | 7 V ~ 40 V |
| 降壓 | Yes |
| 反向 | No |
| 封裝/外殼 | 16-SOIC (0.154", 3.90mm Width) |
| 反激式 | Yes |
| 頻率 - 最大值 | 600kHz |
| 占空比 | 49% |
| 輸出數 | 2 |
| 升壓 | No |
