SN74AUC2G04YZPR
Inverter 2-Element CMOS 6-Pin DSBGA T/R
廠商型號:
SN74AUC2G04YZPR
芯天下內部編號:
136-SN74AUC2G04YZPR
生產廠商:
texas instruments
描述:
Inverter 2-Element CMOS 6-Pin DSBGA T/R
產品類別:
Logic and Timing|Logic ICs|Inverter Schmitt Trigger
客戶編號:
規格書:
查看PDF

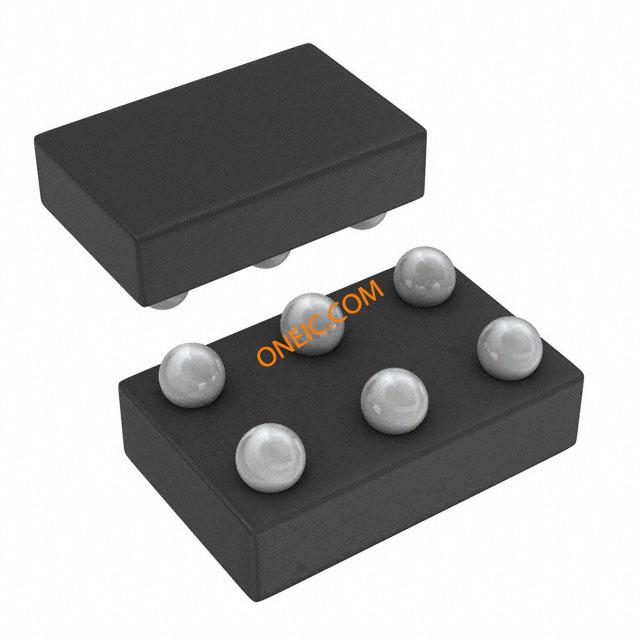

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Package | 6DSBGA |
| Logic Function | Inverter |
| Logic Family | AUC |
| Number of Elements per Chip | 2 |
| Maximum Low Level Output Current | 9 mA |
| Maximum High Level Output Current | -9 mA |
| Maximum Propagation Delay Time @ Maximum CL | 2@1.8V|1.5@2.5V ns |
| Propagation Delay Test Condition | 30 pF |
| Typical Operating Supply Voltage | 1.8|2.5 V |
| Operating Temperature | -40 to 85 °C |
| Fabrication Technology | CMOS |
| Standard Package | Tape & Reel |
| Product Category | Inverters |
| RoHS | RoHS Compliant |
| Number of Circuits | 2 |
| Logic Type | CMOS |
| High Level Output Current | - 9 mA |
| Low Level Output Current | 9 mA |
| Propagation Delay Time | 2 ns, 1.5 ns |
| Supply Voltage - Max | 2.7 V |
| Supply Voltage - Min | 0.8 V |
| Maximum Operating Temperature | + 85 C |
| Package / Case | DSBGA-6 |
| Packaging | Reel |
| Mounting Style | SMD/SMT |
| Operating Supply Voltage | 0.8 V to 2.7 V |
| Factory Pack Quantity | 3000 |
| Absolute Propagation Delay Time | 3.1 |
| Mounting | Surface Mount |
| Package Width | 0.92(Max) |
| PCB | 6 |
| Screening Level | Commercial |
| Typical Operating Supply Voltage | 1.8|2.5 |
| EU RoHS | Compliant |
| Maximum Quiescent Current | 10 |
| Minimum Operating Temperature | -40 |
| Supplier Package | DSBGA |
| Standard Package Name | BGA |
| Maximum Operating Temperature | 85 |
| Maximum High Level Output Current | -9 |
| Package Length | 1.42(Max) |
| Minimum Operating Supply Voltage | 0.8 |
| Pin Count | 6 |
| Package Height | 0.31(Max) |
| Maximum Low Level Output Current | 9 |
| Maximum Operating Supply Voltage | 2.7 |
| Lead Shape | Ball |
| Number of Inputs | 1 |
| Mounting Type | Surface Mount |
| Current - Output High, Low | 9mA, 9mA |
| Supplier Device Package | 6-DSBGA, 6-WCSP (1.4x0.9) |
| Current - Quiescent (Max) | 10μA |
| Voltage - Supply | 0.8 V ~ 2.7 V |
| Max Propagation Delay @ V, Max CL | 1.5ns @ 2.5V, 30pF |
| Logic Level - Low | 0 V ~ 0.7 V |
| Logic Level - High | 1.7V |
| Package/Case | 6-XFBGA, DSBGA |
| rohs | Lead free / RoHS Compliant |
| Other Names | 296-23240-1 |
| Series | SN74AUC2G04 |
| Unit Weight | 0.000060 oz |
| Technology | CMOS |
| Logical Function | Inverter |
| Operating Temp Range | -40C to 85C |
| Package Type | DSBGA |
| Quiescent Current | 10 uA |
| Number of Elements | 2 |
| Operating Temperature Classification | Industrial |
| Rad Hardened | No |
| Operating Supply Voltage (Typ) | 1.8/2.5 V |
| Operating Supply Voltage (Min) | 0.8 V |
| Operating Supply Voltage (Max) | 2.7 V |
| Status | ACTIVE |
| Temp (oC) | -40 to 85 |
| Package | Pins | DSBGA?(YZP) | 6 |
| Device Marking | View |
| Package QTY | Carrier | 3000 | LARGE T&R |
| Functional Diagram | |
| Technology Family | AUC |
| tpd @ Nom Voltage | 5.4 3.1 2 1.7 1.2 |
| Input Type | CMOS |
| Bits | 2 |
| HiRel | |
| Package Group | DSBGA SC70 SOT-23 |
| Output Type | CMOS |
| Reference Design | |
| VCC | 2.7 |
| Operating Temperature Range | -40 to 85 |
| Datasheet | SCES437A |
| F @ Nom Voltage | 250 |
| ICC @ Nom Voltage | 0.01 |
| Schmitt Trigger | No |
| Rating | Catalog |
| Output Drive (IOL/IOH) | 9/-9 |
| TI Design | |
| Voltage | 0.8 1.2 1.5 1.8 2.5 |
| Function | Inverter |
| Brand | Texas Instruments |
| Minimum Operating Temperature | - 40 C |
