SN74HC4851D
8-CHANNEL ANALOG MULTIPLEXER/DEMULTIPLEX
廠商型號:
SN74HC4851D
芯天下內部編號:
136-SN74HC4851D
生產廠商:
texas instruments
描述:
8-CHANNEL ANALOG MULTIPLEXER/DEMULTIPLEX
產品類別:
Logic and Timing|Logic ICs|Logic Misc

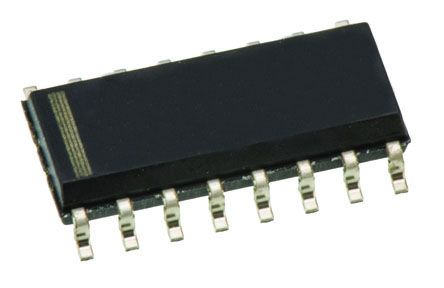

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Package | 16SOIC |
| Type | Analog Multiplexer |
| Maximum On Resistance | 650@2V Ohm |
| Maximum Propagation Delay Bus to Bus | 25@2V|15.5@3V|14.5@3.3V|11.5@4.5V|10@6V ns |
| Multiplexer Architecture | 8:1 |
| Maximum Turn-On Time | 95@2V ns |
| Chip Enable Signals | Yes |
| Configuration | Single 8:1 |
| Minimum Single Supply Voltage | 2 V |
| Maximum Single Supply Voltage | 6 V |
| Standard Package | Rail / Tube |
| Product Category | Multiplexer Switch ICs |
| RoHS | RoHS Compliant |
| Number of Channels | 8 |
| Number of Switches | 1 |
| On Resistance (Max) | 650 Ohms |
| On Time (Max) | 95 ns |
| Off Time (Max) | 95 ns |
| Propagation Delay Time | 25 ns |
| Operating Supply Voltage | 2 V to 6 V |
| Operating Supply Current | 2 uA |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | SOIC-16 |
| Minimum Operating Temperature | - 40 C |
| Packaging | Tube |
| Series | SN74HC4851 |
| Factory Pack Quantity | 40 |
| Typical Single Supply Voltage | 3|5 |
| Mounting | Surface Mount |
| Package Width | 4(Max) |
| PCB | 16 |
| Maximum On Resistance | 650@2V |
| Maximum Turn-Off Time | 95@2V |
| EU RoHS | Compliant |
| Maximum Supply Current | 0.002@6V |
| Power Supply Type | Single |
| Number of Channels per Chip | 1 |
| Minimum Operating Temperature | -40 |
| Supplier Package | SOIC |
| Standard Package Name | SOIC |
| Maximum Operating Temperature | 125 |
| Maximum Single Supply Voltage | 6 |
| Number of Inputs per Chip | 8 |
| Package Length | 10(Max) |
| Pin Count | 16 |
| Number of Outputs per Chip | 1 |
| Minimum Single Supply Voltage | 2 |
| Package Height | 1.5(Max) |
| Maximum Turn-On Time | 95@2V |
| Lead Shape | Gull-wing |
| Function | Multiplexer/Demultiplexer |
| Circuit | 1 x 8:1 |
| Mounting Type | Surface Mount |
| Supplier Device Package | 16-SOIC N |
| Voltage Supply Source | Single Supply |
| Operating Temperature | -40°C ~ 125°C |
| Current - Supply | 2μA |
| On-State Resistance | 195 Ohm |
| Voltage - Supply, Single/Dual (±) | 2 V ~ 6 V |
| Package/Case | 16-SOIC (0.154", 3.90mm Width) |
| rohs | Lead free / RoHS Compliant |
| On Time - Max | 95 ns |
| Unit Weight | 0.004998 oz |
| On Resistance - Max | 650 Ohms |
| Off Time - Max | 95 ns |
| Operating Temp Range | -40C to 125C |
| Package Type | SOIC |
| Operating Temperature Classification | Automotive |
| Number of Inputs | 8 |
| Number of Outputs | 1 |
| Dual Supply Voltage (Typ) | Not Required V |
| Power Supply Requirement | Single |
| Supply Current | 0.002@6V mA |
| Dual Supply Voltage (Min) | Not Required V |
| Rad Hardened | No |
| Single Supply Voltage (Min) | 2 V |
| Single Supply Voltage (Max) | 6 V |
| Single Supply Voltage (Typ) | 3/5 V |
| Dual Supply Voltage (Max) | Not Required V |
| Multiplexer Configuration | Single 8 |
| Analog Switch ON Resistance | 650@2V ohm |
| Analog Switch Turn Off Time | 95@2V ns |
| Analog Switch Turn On Time | 95@2V ns |
| No. of Circuits | :1 |
| On State Resistance Max | :195ohm |
| Supply Voltage Range | :2V to 6V |
| Analogue Switch Case Style | :SOIC |
| No. of Pins | :16 |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :125°C |
| MSL | :MSL 1 - Unlimited |
| SVHC | :No SVHC (20-Jun-2013) |
| Base Number | :74 |
| IC Generic Number | :74HC4851 |
| Logic Case Style | :SOIC |
| Logic Function Number | :744851 |
| Logic IC Base Number | :744851 |
| Logic IC Family | :HC |
| Logic IC Function | :8 Channel Analog Multiplexer/Demultiplexer |
| Operating Temperature Range | :-40°C to +125°C |
| Output Current Max | :20mA |
| Supply Voltage | :5V |
| Supply Voltage Max | :6V |
| Supply Voltage Min | :2V |
| Weight (kg) | 0.000141 |
| Tariff No. | 85423190 |
| Case | SO16 |
| Integrated circuits features | injection current effect |
| Number of inputs | 8 |
| Integrated circuit type | digital |
| Gross weight | 0.37 g |
| Number of channels | 8 |
| Multiplicity | 1 |
| Kind of integrated circuit | analog, demultiplexer/multiplexer |
| Collective package [pcs] | 40 |
| spg | 40 |
| Status | ACTIVE |
| Temp (oC) | -40 to 125 |
| Package | Pins | SOIC?(D) | 16 |
| Device Marking | View |
| Package QTY | Carrier | 40 | TUBE |
| Functional Diagram | |
| Technology Family | HC |
| tpd @ Nom Voltage | |
| Input Type | LVTTL CMOS |
| Bits | 8 |
| HiRel | |
| Package Group | PDIP SOIC TSSOP TVSOP |
| Output Type | CMOS |
| Reference Design | |
| Additional Features | Low Power Low Crosstalk |
| VCC | 6 |
| Datasheet | SCLS542B |
| F @ Nom Voltage | |
| ICC @ Nom Voltage | 0.002 |
| Schmitt Trigger | No |
| Rating | Catalog |
| TI Design | |
| Ron | 500 |
| Bandwidth | |
| Voltage | 3.3 5 |
