SRC4382IPFB
Sample Rate Converter 48-Pin TQFP Tray
廠商型號:
SRC4382IPFB
芯天下內部編號:
136-SRC4382IPFB
生產廠商:
texas instruments
描述:
Sample Rate Converter 48-Pin TQFP Tray
產品類別:
Data Conversion|Data Conversion Misc

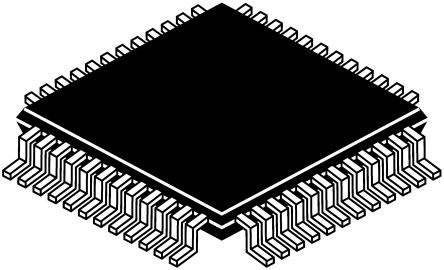

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Package | 48TQFP |
| Family | SRC4382 |
| Operating Temperature | -40 to 85 °C |
| Standard Package | Trays |
| Standard Package Name | QFP |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 85 |
| Package Height | 1.05(Max) |
| Mounting | Surface Mount |
| Packaging | Tray |
| PCB | 48 |
| Package Width | 7.2(Max) |
| Supplier Package | TQFP |
| Package Length | 7.2(Max) |
| Minimum Operating Temperature | -40 |
| Pin Count | 48 |
| Lead Shape | Gull-wing |
| Mounting Type | Surface Mount |
| Supplier Device Package | 48-TQFP (7x7) |
| Applications | Interfaces, Recorders, Routers |
| Type | Sample Rate Converter |
| Package/Case | 48-TQFP |
| rohs | Lead free / RoHS Compliant |
| Operating Supply Voltage | 1.65 V to 2 V / 3 V to 3.6 V |
| Product Category | Audio Sample Rate Converters |
| Operating Temperature Range | - 40 C to + 85 C |
| Series | SRC4382 |
| Package / Case | TQFP-48 |
| Unit Weight | 0.004938 oz |
| Mounting Style | SMD/SMT |
| Power Dissipation | 326 mW |
| THD plus Noise | - 125 dB |
| Factory Pack Quantity | 250 |
| Interface | I2C, SPI |
| RoHS | RoHS Compliant |
| Audio Control Type | :Digital |
| Supply Voltage Range | :1.65V to 1.95V, 3V to 3.6V, 1.65V to 3.6V |
| Control Interface | :I2C, SPI |
| Audio IC Case Style | :TQFP |
| No. of Pins | :48 |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :85°C |
| MSL | :MSL 2 - 1 year |
| SVHC | :No SVHC (20-Jun-2013) |
| Base Number | :4382 |
| Control / Process Application | :Digital Audio Interface, Digital Audio Recorders and Mixing Desks, Digital Audio Routers |
| No. of Channels | :2 |
| Output Type | :Voltage |
| Supply Voltage Max | :3.6V |
| Supply Voltage Min | :1.65V |
| Termination Type | :SMD |
| Weight (kg) | 0.0002 |
| Tariff No. | 85423190 |
| Status | ACTIVE |
| Temp (oC) | -40 to 85 |
| Package | Pins | TQFP?(PFB) | 48 |
| Device Marking | View |
| Package QTY | Carrier | 250 | JEDEC TRAY (5+1) |
| Digital Audio Interface | AES/EBU S/PDIF |
| Control Mode | SW (SPI) H/W |
| Inputs | |
| Package Group | TQFP |
| Audio Data Format | Normal I2S |
| Reference Design | |
| Sampling Rate | 216 |
| Digital Supply (up to 5 V) | 1.65 - 1.95 3 - 3.6 |
| Dynamic Range | 128 |
| # SRC Channels | 2 |
| Power Supply | 1.8 3.3 |
| Datasheet | SBFS030C |
| Rating | Catalog |
| THD+N | -125 |
| TI Design |
