SSF67A25B175
SWITCH 2 LEVEL SS NO/NC .6A
廠商型號:
SSF67A25B175
芯天下內部編號:
97-SSF67A25B175
生產廠商:
Cynergy 3
描述:
SWITCH 2 LEVEL SS NO/NC .6A
產品類別:
Sensors, Transducers|Float, Level Sensors|SSF67
客戶編號:
規格書:
查看PDF

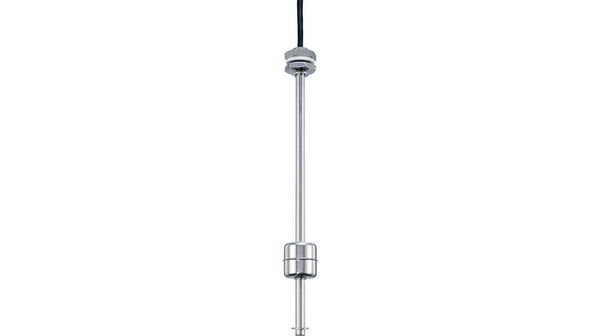

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Switch Actuation Level | 0.984", 6.890" (25mm, 175mm) |
| Material - Housing & Prism | 316 Stainless Steel |
| Mounting Type | Panel Mount, M16x2 Thread |
| Voltage Rating | 120VDC, 240VAC |
| Minimum Liquid Specific Gravity | 0.80 |
| Operating Temperature | -20°C ~ 135°C |
| Standard Package | 1 |
| Output Configuration | Selectable, NO/NC, 25VA |
| Type | Liquid |
| Other Names | 725-1138 |
| Body Material | Stainless Steel |
| Device Type | Float |
| Gasket Material | Nitrile |
| Maximum Current | 0.6 A |
| Maximum Operating Temperature | +135°C |
| Maximum Pressure | 10bar |
| Minimum Operating Temperature | -20°C |
| Switch Output | Direct Load |
| rohs | Not Applicable |
| Switching Voltage AC Max | 240 |
| Switching differential (each level) nominal mm | 1 |
| Total Length | 202mm |
| Difference | 150mm |
| Lower Switch Level | 175mm |
| Switching Power Max VA | 25 |
| Switching Current Max A | 0.6 |
| Minimum Fluid SG | 0.8 |
| Material | Stainless Steel |
| Material Type | Stainless Steel 316L |
| Minimum high level mm | 25 |
| MainCategory | Liquid Level Sensors |
| Upper Switch Level | 25mm |
| Switching Voltage DC Max | 120 |
| Maximum low level mm | 3500 |
| Temperature Range | -20°C to 135°C |
| Max Pressure | 10 Bar |
| SubCategory | Multi Level |
| Switching power | 25 |
| Pressure resistance | 10 bar |
| Switching current | 0.6 A |
| Switching voltage | 250 VAC |
| Operating temperature | 0...+135 °C |
| Connection | PVC Cable 1 m |
| Dimensions ? x L | 28 x 202 mm |
| Mounting aperture ? | 16.5 |
| 開關輸出 | 直接裝入 |
| 最大電流 | 0.6 A |
| 裝置類型 | 浮動 |
| 最高工作溫度 | +135°C |
| 安裝類型 | 垂直 |
| 最低工作溫度 | -20°C |
| 主體材料 | 不銹鋼 |
| 墊片材料 | 腈 |
| 最大壓力 | 10bar |
